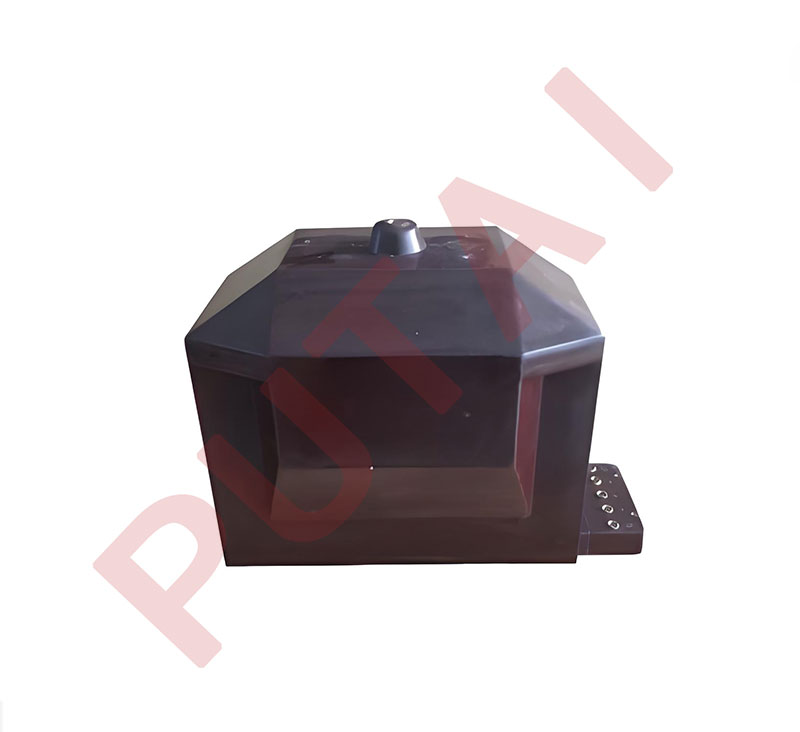

The JDZX10-17.5 and JDZX10-24 are 24kV indoor single-phase epoxy resin voltage transformers designed for use in single-phase or three-phase AC circuits. They are used for measuring electric capacity, voltage, and providing protective relaying in systems operating at 50Hz or 60Hz.
These transformers feature a fully enclosed epoxy resin casting with low magnetic density cores and a large creepage distance for superior external insulation. They offer high reliability, are maintenance-free, and comply with IEC 60044-2 and IEC 61869-1 & 3 standards, ensuring safe and stable indoor operation.

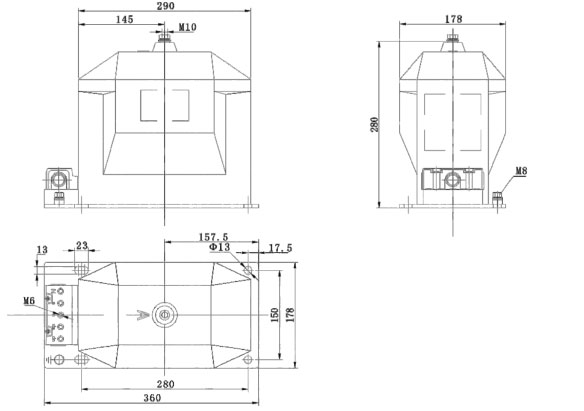

| Type | Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination | Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level (kV) |
| JDZX10-17.5 JDZX10-24 |
15/√3 22/√3 |
0.11/√3 | 0.2 | 25 | 500 | 17.5/38/95 24/50/125 |
| 0.5 | 50 | |||||
| 1 | 100 | |||||
| 0.11/0.11/√3/0.11/0.11/√3 | 0.2/6P | 15/50 | 400 | |||
| 0.5/6P | 30/50 |
