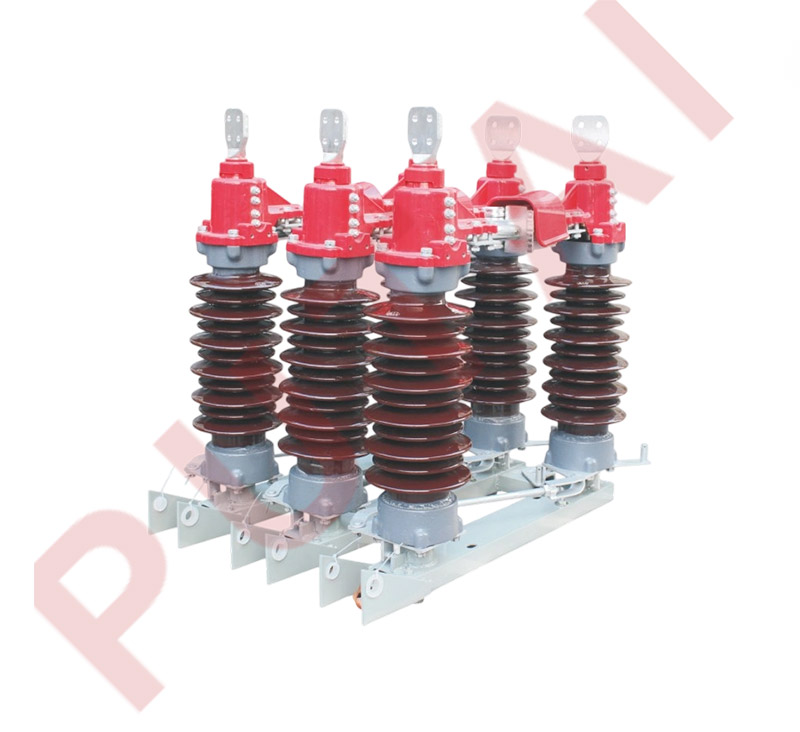

GW4-40.5 Outdoor High Voltage Disconnector

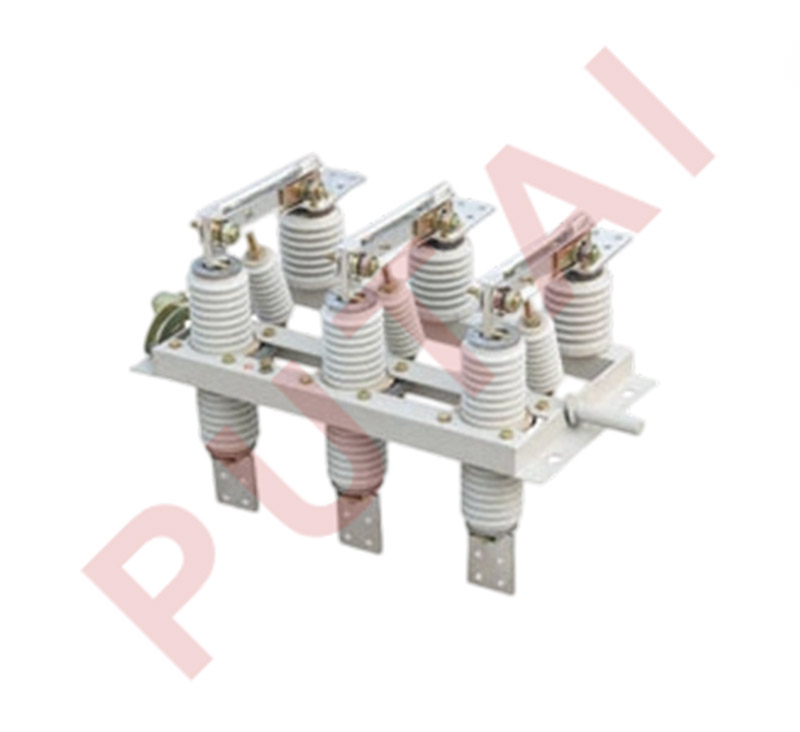

GN19-12 Indoor High-Voltage Disconnecting Switch

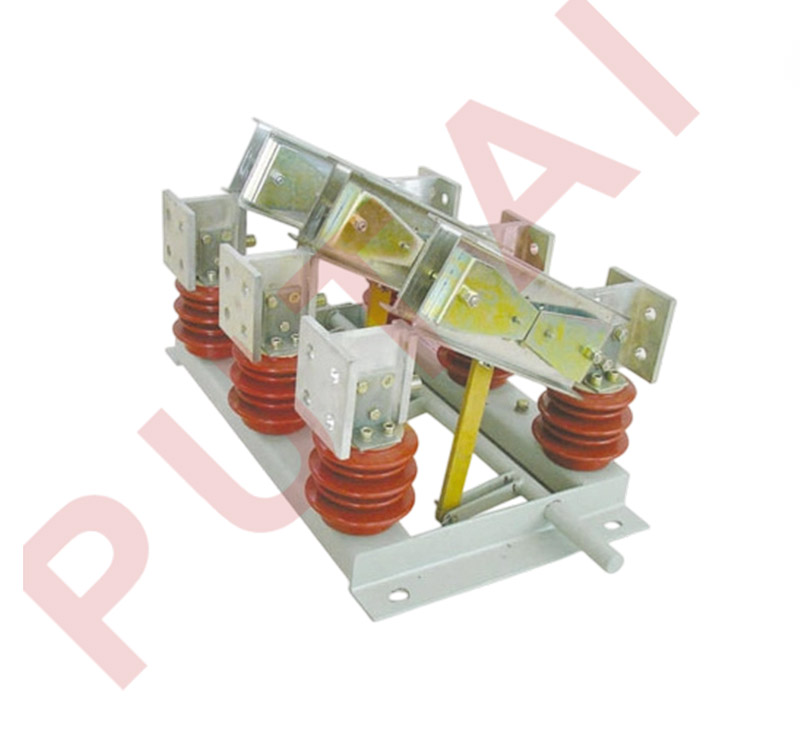

GN22-12 Indoor High-Voltage Disconnecting Switch

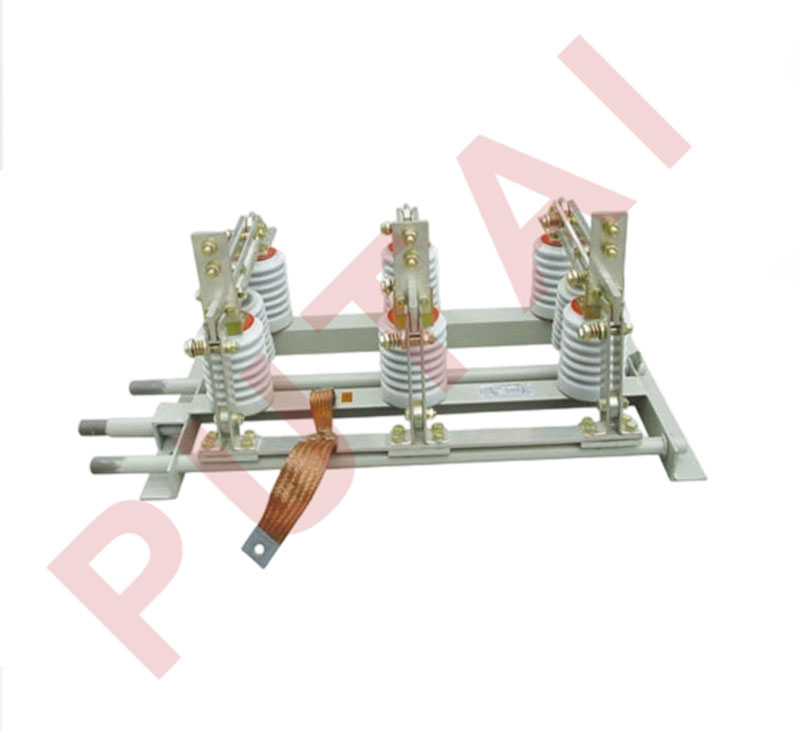

GN24-12D Indoor High-Voltage Disconnecting Switch

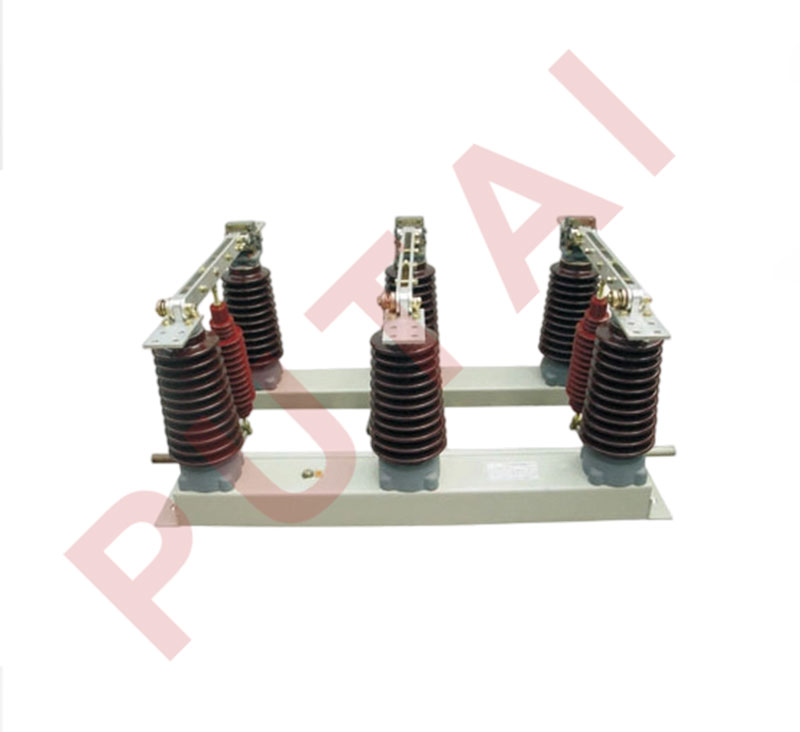

GN27-40.5 Indoor High-Voltage Disconnecting Switch

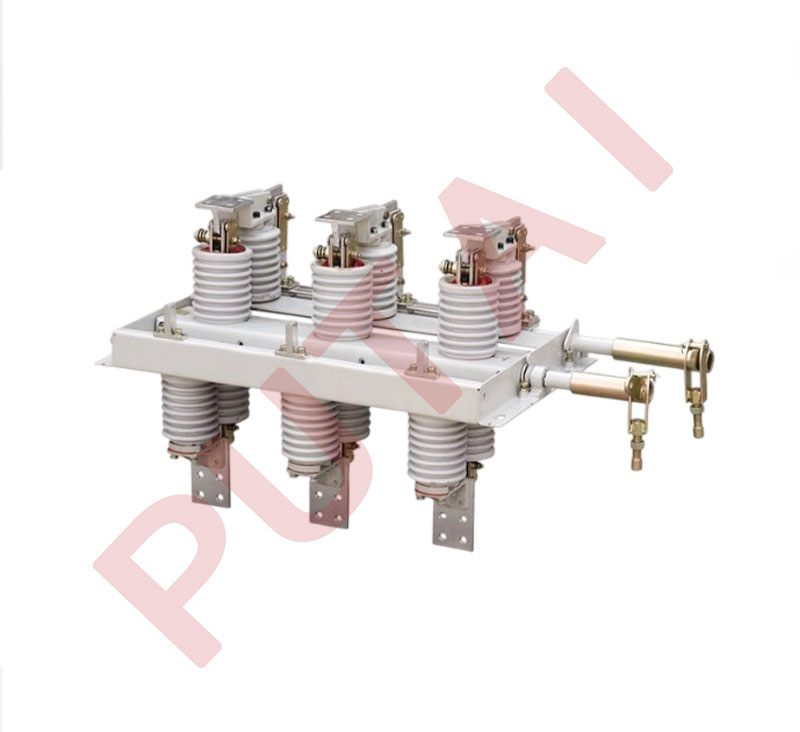

GN30-12 Series Indoor Rotary-Type High-Voltage Disconnecting Switch

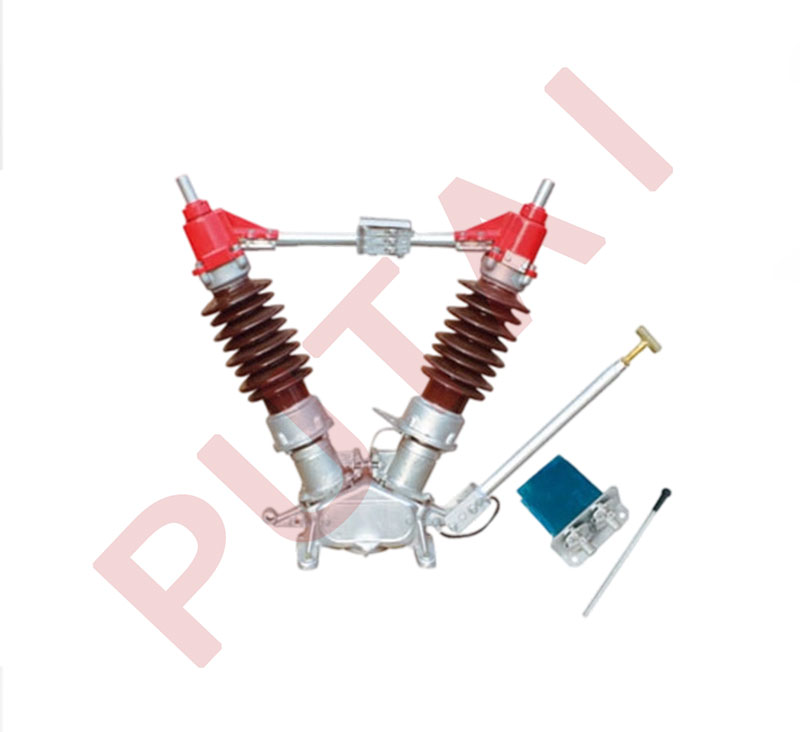

GW5A-40.5 Outdoor High-Voltage Disconnecting Switch

Characteristics of Disconnecting Switch

Rated Voltage

12kV - 126kV

Rated Current

400A - 4000A

Short-Time Withstand Current

20kA - 50kA

Mechanical Life

2,000 operations

Operating Temperature

-25°C - +40°C

Creepage Distance

1,025mm - 3,906mm

Materials

6 global material development partners

Detection

100% internal dielectric and thermal performance testing

Compliance

Designed to meet IEC/ANSI standards

Traceability

Complete batch traceability and leading technical support

Why Choose Us

Strong weathering resistance

adapt to extreme environments such as coastal, high pollution, high temperature and high humidity.

High reliability

Reduces the risk of grid failures and reduces maintenance costs.

International Standard Adaptation

Meet the requirements of power equipment in the European, Middle East and Southeast Asian markets.

FAQ

What is the purpose of a Disconnector?

A disconnector is used to isolate parts of an electrical circuit to ensure safe maintenance and emergency operations.

What are the key features of a Disconnector?

It provides clear visible isolation, a robust mechanical design, and simple manual operation for effective safety.

How does a Disconnector enhance system reliability?

It quickly isolates faulty sections, preventing fault propagation and ensuring safe maintenance procedures.

Where are Disconnectors typically applied?

They are widely used in industrial, commercial, and utility systems where routine isolation is necessary.
