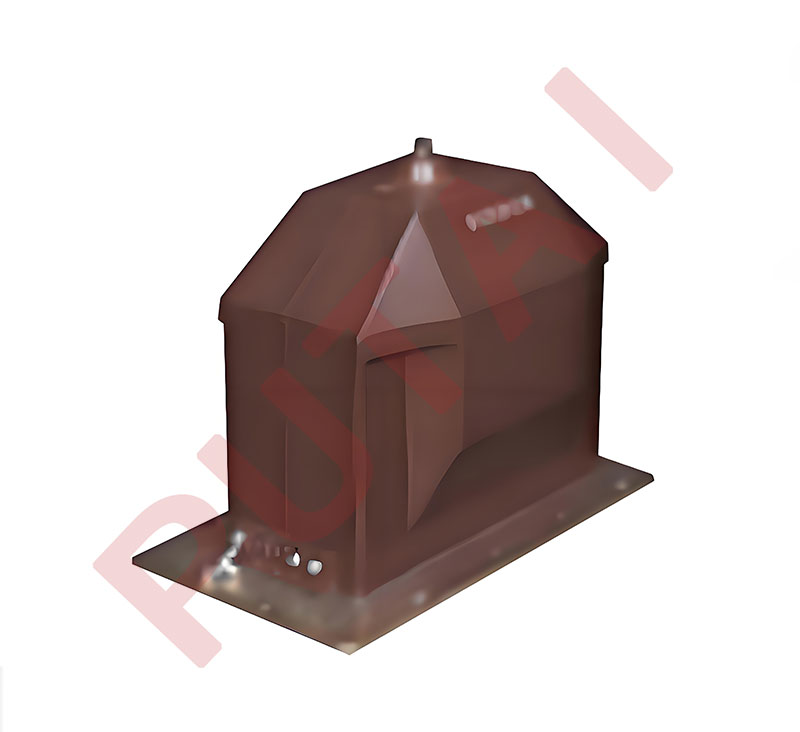

The JDZX10-36 is a 36kV indoor single-pole insulated voltage transformer featuring epoxy resin casting. It is widely used indoors for measuring voltage, electric energy, and protective relaying in isolated neutral systems operating at frequencies of 50Hz to 60Hz, with the highest equipment voltage rating of 36kV.
This transformer provides reliable performance with excellent insulation properties due to the epoxy resin construction. It is suitable for stable and accurate measurement in medium voltage electrical systems, ensuring safe and efficient operation.
| Type | Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination | Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level (kV) |
| JDZX10-36 | 33/√3 34.5/√3 35/√3 |
0.1/√3 0.11/√3 0.12/√3 |
0.2 | 25 | 600 | 36/70/170 |
| 0.5 | 50 | |||||
| 1 | 100 | |||||
| 0.1/√3/0.1/3 0.11/√30.11/3 0.12/√3/0.12/3 |
0.2/6P(3P) | 20/50 | 600 | |||
| 0.5/6P(3P) | 50/50 | |||||
| 1/6P(3P) | 80/50 |
