The JDZX9-36 and JDZX9-36J are 36kV indoor single-phase voltage transformers featuring epoxy resin casting and single-pole insulation. They are designed for use in isolated neutral systems, providing measurement of voltage, electric energy, and protective relaying in electrical systems operating at 50Hz or 60Hz, with a maximum equipment voltage rating of 36kV (up to 40.5kV).
Manufactured in accordance with IEC 60044-2:2003 and IEC 61869-1 & 3 standards, these transformers offer reliable and accurate performance. They support a load power factor of cosΦ=0.8 (lagging) and are suitable for indoor switchgear applications requiring stable, maintenance-free operation.

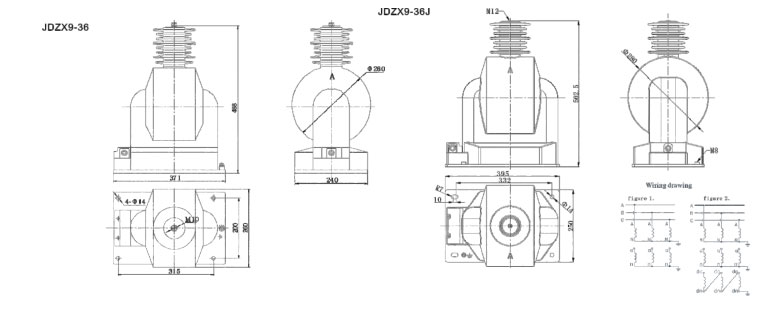

| Type | Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination | Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level (kV) |
| JDZX9-36 JDZX9-36J |
33/√3 | 0.11/√3/0.11/3 | 0.2/6P(3P) | 25/150 | 600 | 36/70/170 (IEC) |
| 0.5/6P(3P) | 50/150 | |||||
| 1/6P(3P) | 120/120 | |||||
| 0.11/√30.11/√3/0.11/3 | 0.2/0.2/6P(3P) | 15/15/100 | 300/300 | |||
| 0.2/0.5/6P(3P) | 15/30/100 | |||||
| 0.5/0.5/6P(3P) | 30/30/150 |
