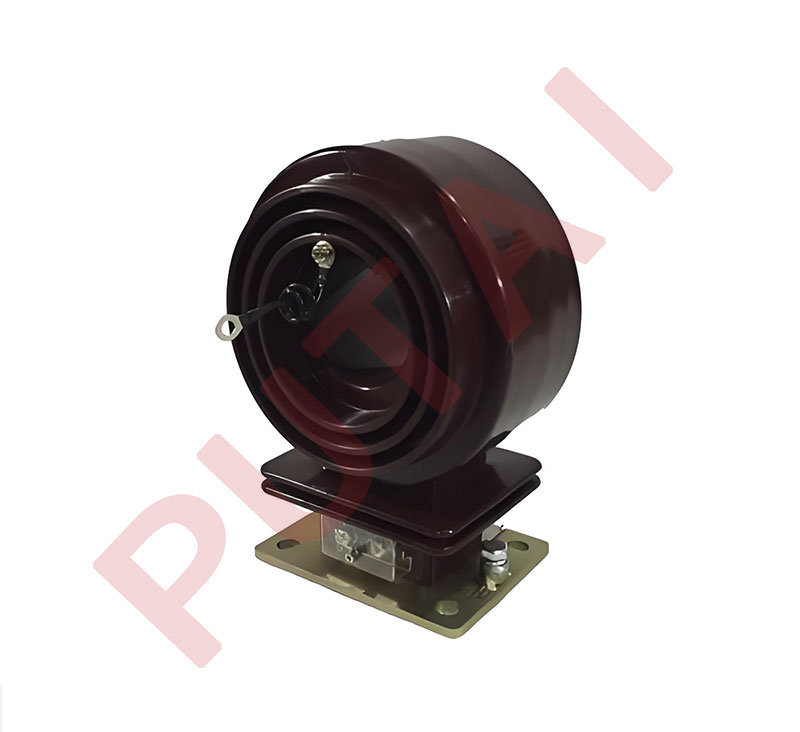

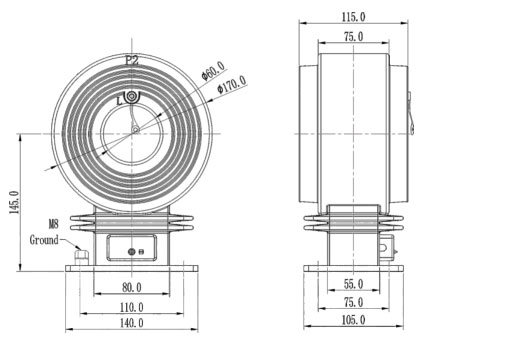

The LMZ9-7.2G is a 7.2kV indoor single-phase epoxy resin busbar type current transformer designed for accurate current measurement, energy metering, and protective relaying in medium-voltage systems. The epoxy resin casting fully encapsulates the busbar primary conductor, secondary winding, and annular core, providing excellent electrical insulation and mechanical protection.
Equipped with a single secondary winding, this CT supports rated primary currents ranging from 300A to 1000A and offers selectable secondary currents of 5A or 1A. The LMZ9-7.2G complies with IEC 60044-1 and IEC 61869-1 & 2 standards and is suitable for indoor installations operating at 50Hz or 60Hz with a rated insulation level of 7.2/20/60kV.
| Rated transformation ratio (A) | Accuracy classes combination | Rated output (VA) | ||
| Measuring | Protective | |||
| 0.2(S) | 0.5 | 10P10 | ||
| 300/5 | 0.2(S) 0.5 1 10P10 |
7.5 10 15 |
7.5 10 15 |
7.5 10 15 |
| 400/5 | ||||
| 500/5 | ||||
| 600/5 | ||||
| 800/5 | ||||
| 1000/5 | ||||
