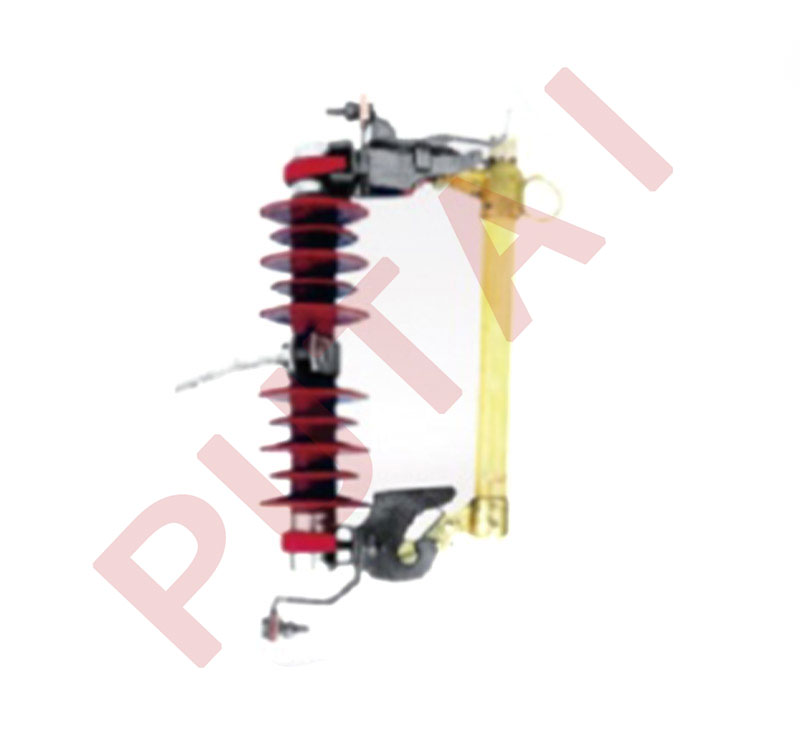

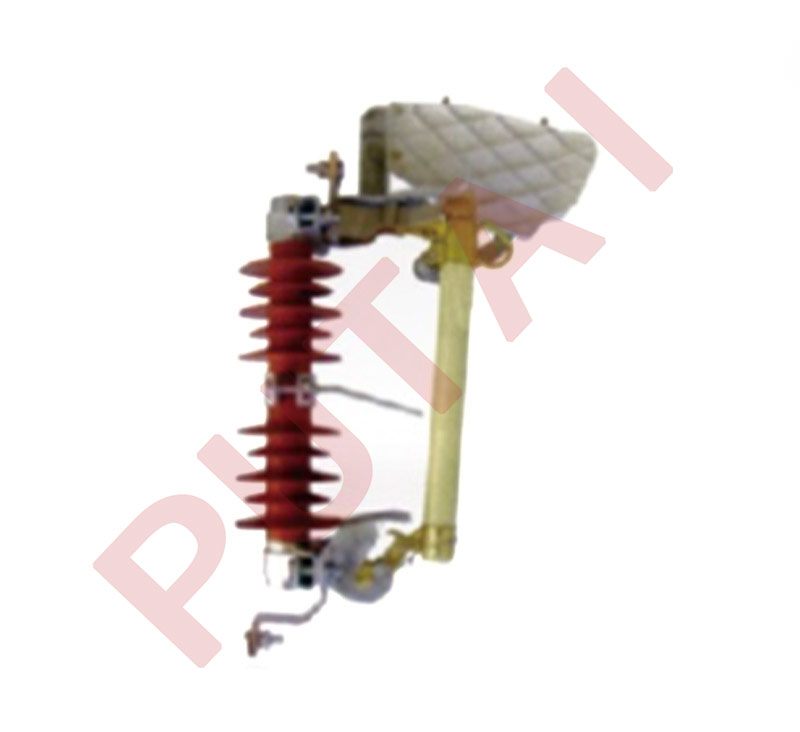

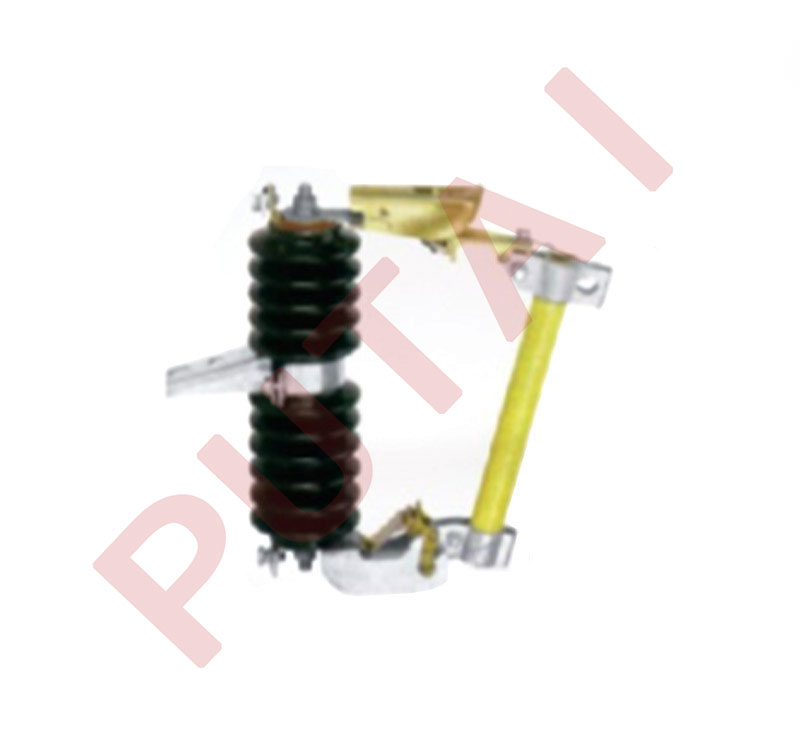

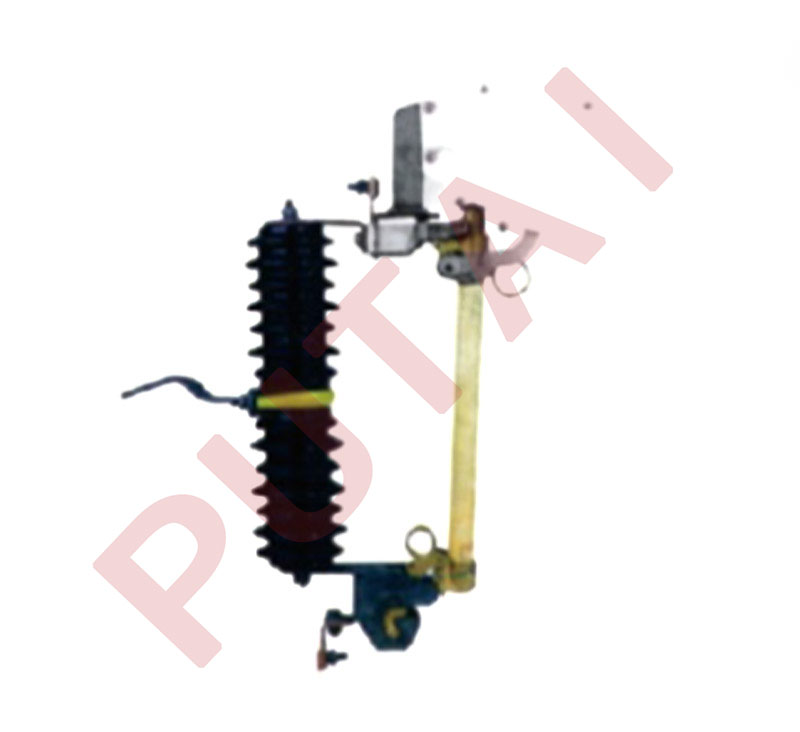

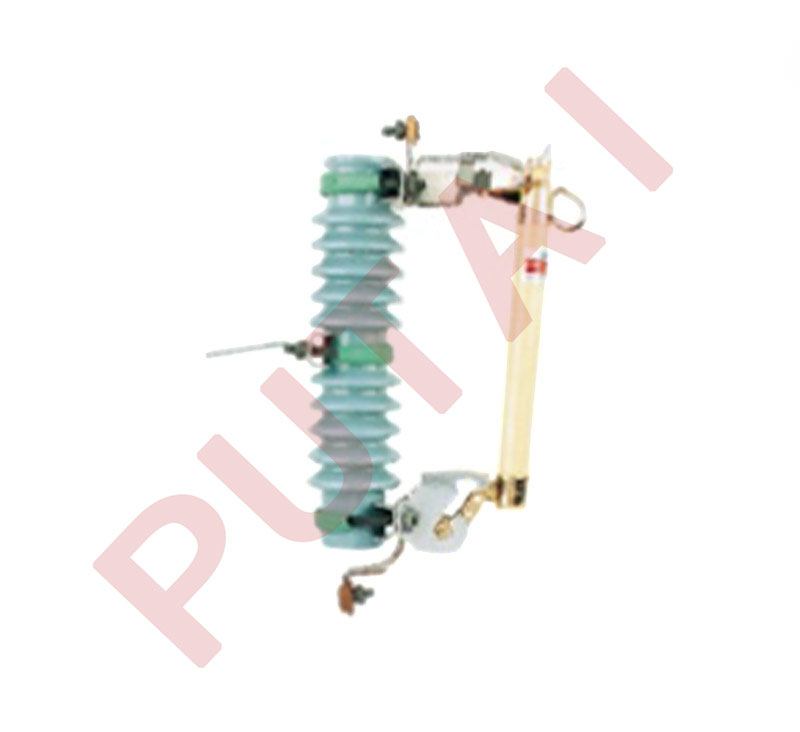

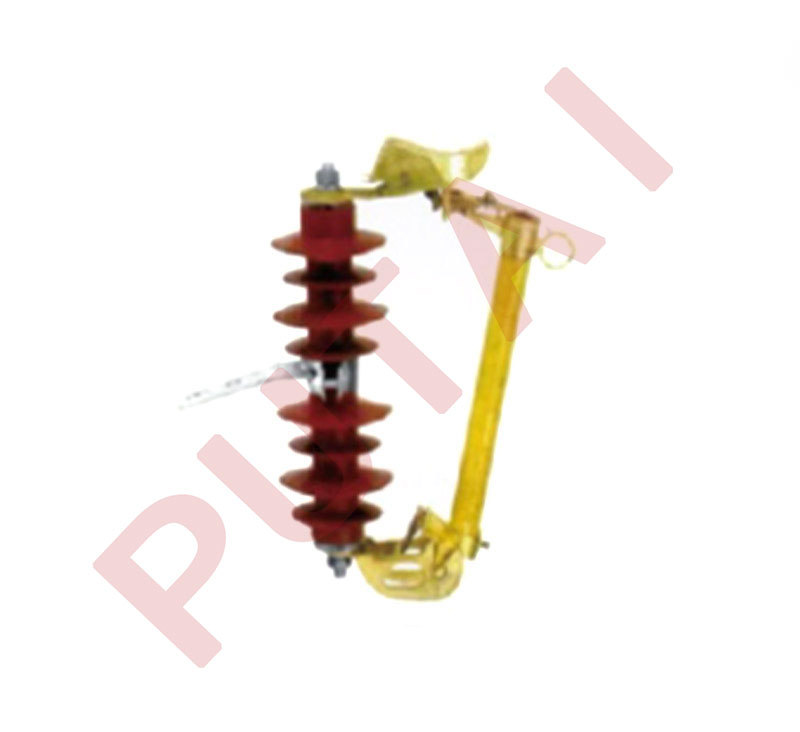

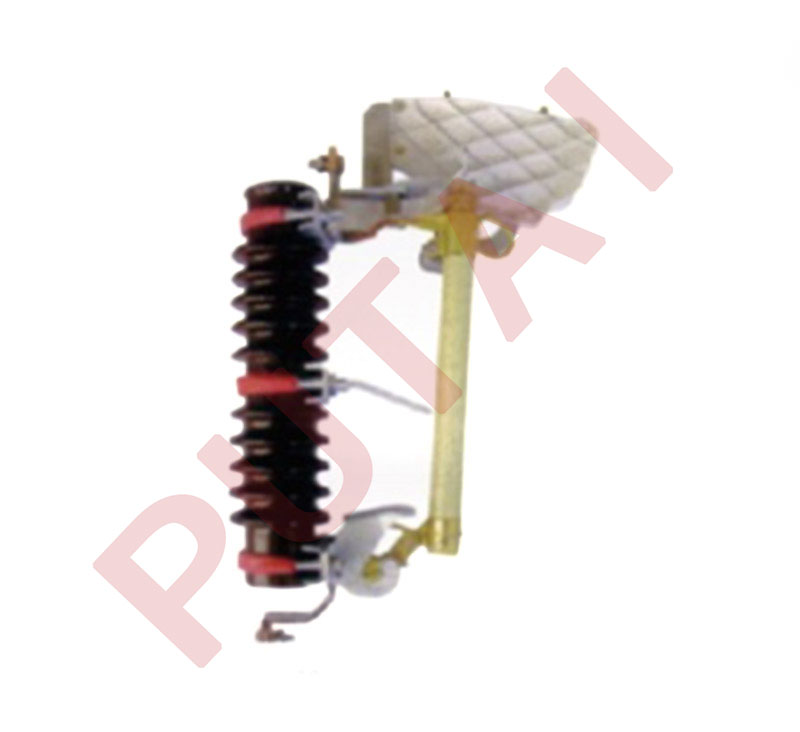

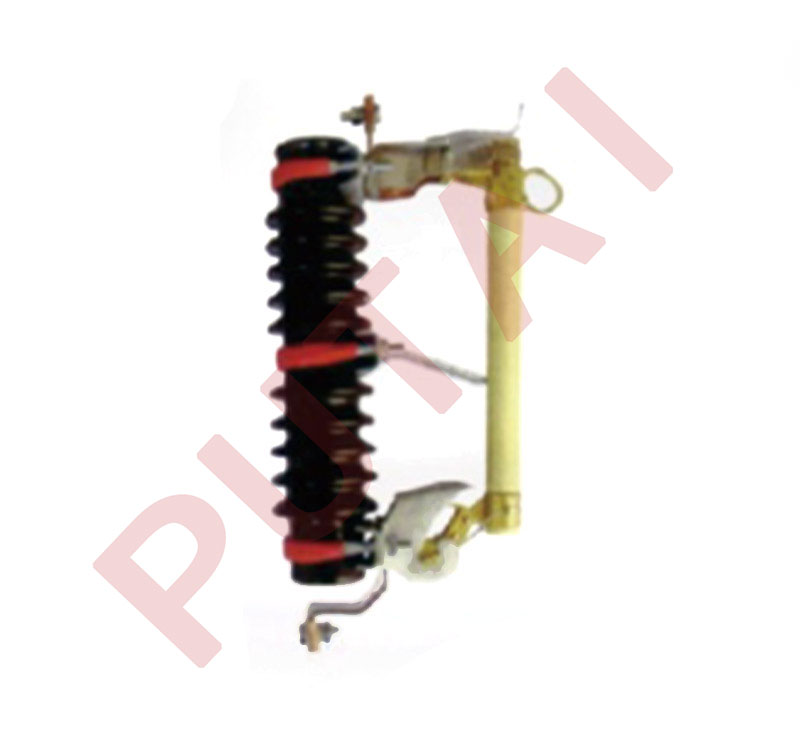

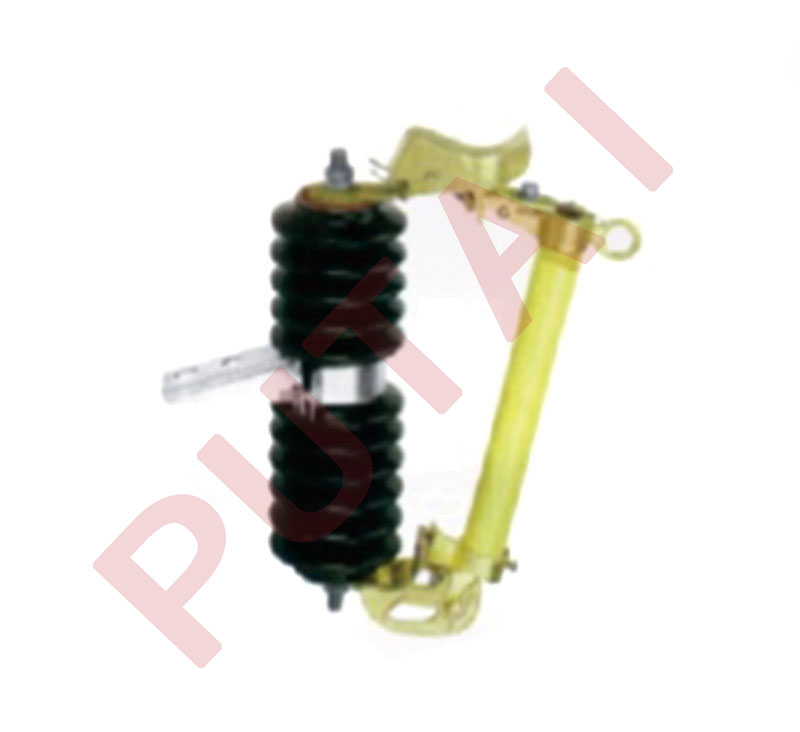

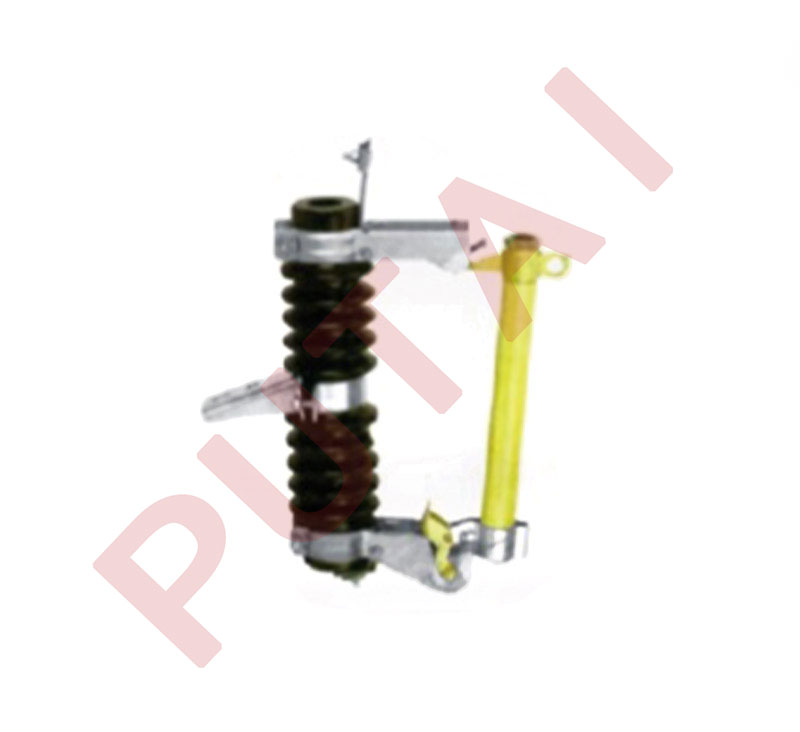

12kV Drop-out Fuse

Enhanced Safety:Visible drop indicator for quick confirmation of fuse operation
Fast Fault Isolation:Rapid disconnection minimizes damage to downstream equipment
Modular Compatibility:Fits a wide range of 10–12 kV switchgear and transformer panels
Rugged Durability:Built to withstand mechanical stresses and adverse weather
Low-Maintenance Design:Tool-free replacement reduces service time and costs
Superior Arc Extinction:Optimized for clean, reliable interruption of fault currents
Space-Saving Footprint:Compact form factor enables installation in tight compartments

Shopping Cart Get a Quote Manual Download

Describe Display

The NCX/RW series 12 kV drop-out fuse offers reliable overcurrent protection and load isolation in medium-voltage distribution networks. Its clear, visible dropout mechanism allows operators to verify fuse operation at a glance, while the robust housing ensures long-term durability in both indoor and outdoor applications.

Designed for seamless integration, the series supports multiple load ratings and switchgear types, providing rapid fault clearing and safe maintenance access. With optimized arc-quenching performance and a compact profile, these fuses enhance system uptime and protect critical equipment in industrial, utility, and infrastructure installations.

Product parameters

Model	Rated voltage (kv)	Rated current (A)	Breaking current (A)	Impact voltage (BIL)	Power frequency withstand voltage (KV)	Climbing distance (mm)	Weight (kg)	Dimensions (cm)
RW11	12	100	6300	110	42	260	7.5	48>32×72
RW11	12	200	8000	110	42	260	7.5	48>32×72
RW11	12	100	6300	110	42	230	6	48×28×11.5
RW11	12	200	8000	110	42	230	6	48×28×11.5
RW11	12	100	6300	110	42	350	4.4	48×28×11.5
RW11	12	200	8000	110	42	350	4.4	48×28×11.5
RW10(F)	12	100	6300	110	42	260	6.7	53.5×14×34
RW10(F)	12	200	8000	110	42	260	6.7	53.5×14×34
HRW10(F)	12	100	6300	110	42	260	4.9	53.5×14×34
HRW10(F)	12	200	8000	110	42	260	4.9	53.5×14×34
RW3	10	100	6300	110	42	240	6	48×28×11.5
RW3	10	200	8000	110	42	240	6	48×28×11.5
RW3	10	100	6300	110	42	240	6	48×28×11.5
RW3	10	200	8000	110	42	240	6	48×28×11.5
HRW3	10	100	6300	110	42	240	3.5	48×28×11.5
HRW3	10	200	8000	110	42	240	3.5	48×28×11.5
RW4	10	100	6300	110	42	240	5.2	48×28×11.5
RW4	10	200	8000	110	42	240	5.2	48×28×11.5
HPRWG1	12	100	6300	110	42	380	6.8	61×42×13
HPRWG1	12	200	8000	110	42	380	6.8	61×42×13
