JDZX18-10R Voltage Transformer

  • Epoxy Resin Cast:Fully enclosed for excellent insulation and protection
  • Advanced Core:Cold-rolled silicon steel sheet improves magnetic efficiency
  • Dual Voltage Rating:Supports 17.5kV and 24kV systems
  • Optimized Wiring:Top primary output and side secondary output for ease of connection
  • Indoor Use:Designed for switchgear and control cabinets
  • Frequency Range:Suitable for 50Hz or 60Hz power systems
Describe Display

The JDZX18-10R Voltage Transformer features epoxy resin casting and a fully enclosed construction, designed for indoor switch cabinet installation. It is used to measure current, electric energy, and provide protective relaying in single-phase or three-phase AC circuits. Operating at frequencies of 50Hz or 60Hz, it supports equipment with rated voltages of 17.5kV or 24kV, making it suitable for medium-voltage systems.



The transformer employs an advanced cold-rolled silicon steel sheet iron core, enhancing magnetic performance and reducing losses. The high-voltage primary winding output is arranged on the top of the product, while the secondary winding output is accessible from the transverse side, ensuring convenient wiring and installation.

Product parameters
Type Rated primary voltage
(kV)
Rated secondary voltage
(kV)
Accuracy classes combination Rated output
(VA)
Thermal limiting current
(VA)
Rated insulation level
(kV)
JDZX18-12R 15/√3
20/√3
22/√3
0.1/√3

0.11/√3
0.2  30  300 17.5/38/95

24/50/125
0.5  50
80
0.1/√3/0.1/3

0.11/√3/0.11/3
0.2/6P (3P) 15/50 300
0.5/6P (3P) 30/50
0.5/0.5/6P (3P) 50/50/150



Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

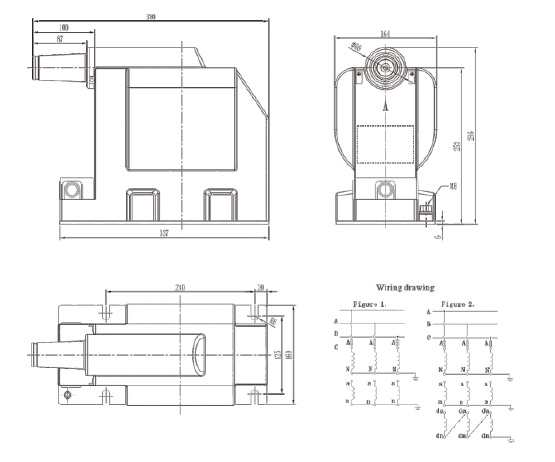

Size/Installation
