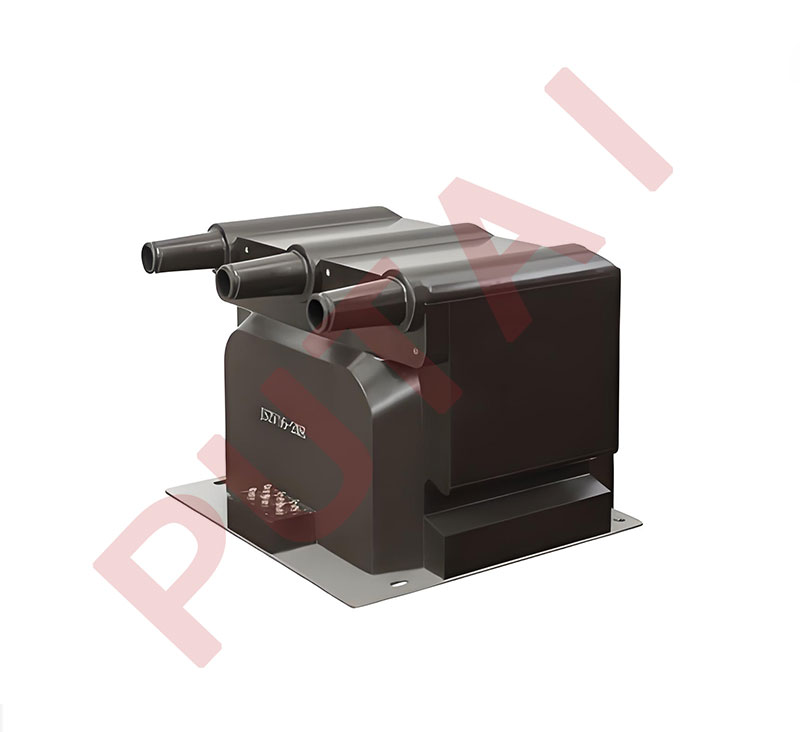

The JSZV16-24R Voltage Transformer is an indoor device with a full epoxy resin casting and fully enclosed construction. It is designed for use in single-phase or three-phase AC circuits to measure voltage, electric energy, and perform protective relaying. Operating at frequencies of 50Hz or 60Hz, it supports equipment with a maximum voltage of 24kV, making it ideal for medium-voltage distribution systems.
This voltage transformer offers excellent performance with high reliability, low magnetism of the iron core, and a large creepage distance for external insulation. Its design is maintenance-free and well-suited for demanding indoor environments that require long-term accuracy and durability.

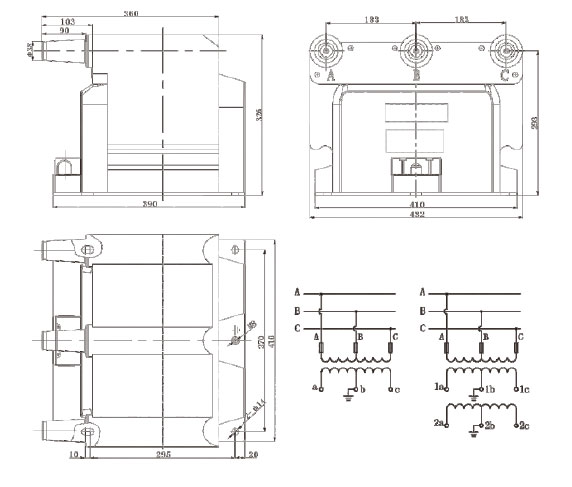

| Type | Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination | Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level (kV) |
| JSZV16-24R | 11 | 0.1 0.11 |
0.2 | 25 | 600 | 12/28/75 |
| 0.5 | 50 | |||||
| 1 | 100 | |||||
| 0.1/0.1 0.11/0.11 |
0.2/0.2 | 15/15 | 300 | |||
| 0.2/0.5 | 15/30 | |||||
| 0.1/.022 0.11/0.22 |
0.2/6P(3P) | 15/300 | 600 | |||
| 0.5/6P(3P) | 25/300 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
