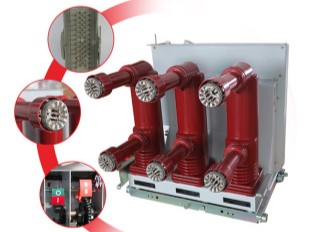

The 12kV Center Distance 275mm Embedded Pole is not only an insulation component but a precision mechanical assembly that dictates the dynamic performance of a vacuum circuit breaker. Its carefully calibrated mechanical parameters ensure fast, consistent, and reliable switching operations, which are vital for protecting modern power systems from faults . The embedded pole's design allows for precise control of contact distance and operation speed, enabling the circuit breaker to meet stringent performance requirements .
Key mechanical parameters are specified with tight tolerances to ensure consistent behavior. The average opening speed is 1.1±0.2 m/s, and the average closing speed is 0.8±0.2 m/s . These speeds, controlled by the operating mechanism and transmitted through the embedded pole's pull rod, are fundamental to successful arc extinction. The contact closing bounce time is ≤2ms, and the three-phase asynchronism is ≤1ms, ensuring minimal contact wear and balanced operation across all phases .
The forces involved in switching are also precisely defined. The embedded pole provides a rated contact pressure of 2500±200N (or 3200±200N for higher current ratings), which is essential for maintaining a low and stable contact resistance during normal current carrying . The contact self-closing force is 110±60N, while the contact reaction force at rated opening distance is 180±50N . These values guide the selection and calibration of the circuit breaker's operating mechanism.
To guarantee a long operational life, the mechanism is designed to withstand significant wear. The contact allowable wear thickness is 3mm . This provides a substantial margin for thousands of switching operations before any degradation in contact pressure or stroke occurs, directly contributing to the component's mechanical life of 10,000 operations . The precise contact alignment and guided motion also ensure the contact closing bounce time of ≤2ms, minimizing wear and extending the contact's electrical life.
Therefore, the 12kV embedded pole delivers the high-precision mechanical performance required for fast, reliable fault interruption. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs.
