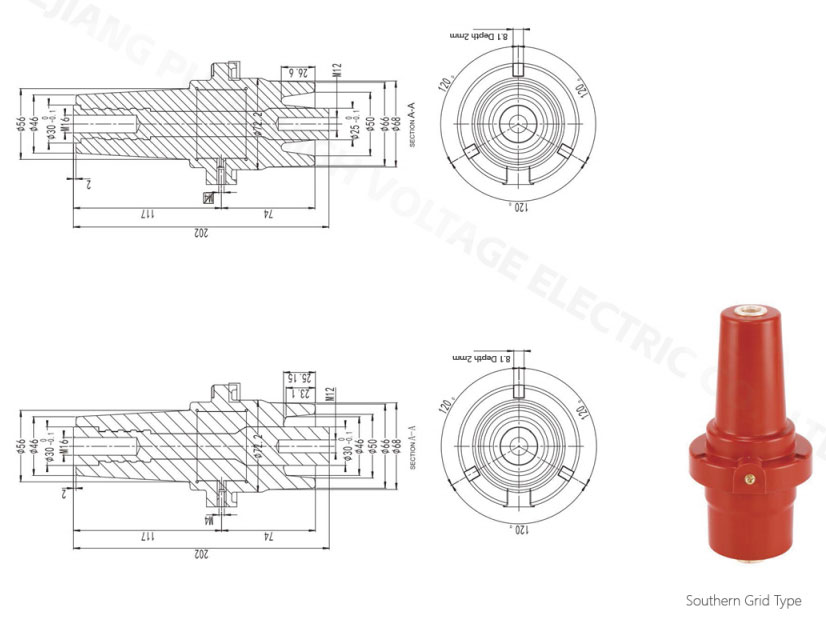

202mm Gas-insulated Switchgear Bushing 630A

The 202 Gas-insulated Switchgear Bushing is specifically designed for 12kV gas-insulated switchgear, with a rated current of 630A, ensuring reliable electrical performance. It has a rated short-time withstand current of 25kA/4s and a rated peak withstand current of 63kA, ensuring stability under high loads and sudden surges. Made from epoxy resin, it provides excellent insulation protection, with a power frequency withstand voltage of 42kV and a lightning impulse withstand voltage of 75kV, effectively isolating high voltage.

With an IP67 protection level, the 202 Gas-insulated Switchgear Bushing offers excellent dust and water resistance, ensuring stable operation in harsh environments. It is compatible with various gas-insulated switchgear equipment, ensuring safe and reliable electrical connections, suitable for a wide range of industrial applications. As an essential component in gas-insulated switchgear systems, the 202 Bushing provides reliable electrical isolation and robust electrical performance for high-voltage systems.
