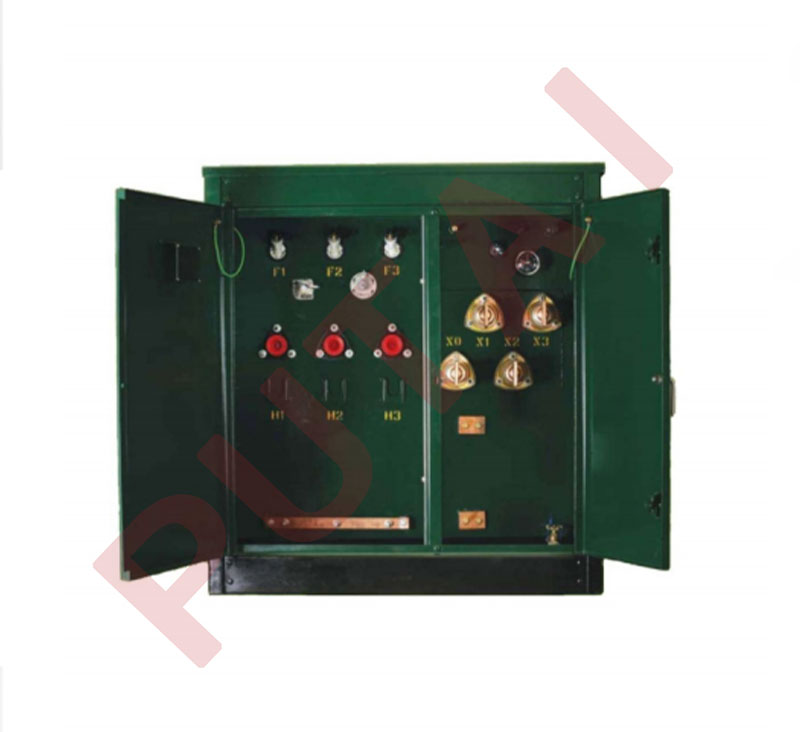

The Three Phase Pad-mounted Transformer offers a reliable, affordable solution for outdoor distribution needs. Its compartment-type, low-profile design mounts directly on concrete pads, eliminating the need for additional protective enclosures while providing safe, step-down transformation from underground primary cables.
Engineered to meet stringent international standards, this transformer delivers dependable performance under the “usual service conditions” defined in IEEE Standard C57.12.00. Its robust housing and efficient design help utilities reduce operating costs and simplify maintenance in a variety of electric power distribution applications.
| KVAAND STANDARD VOLTAGE OFFERINGS | |||
| KVA | H.V. | BIL(KV) | L.V. |
| 30 | 2400 | 60 | 240△120 tapp 280Y 120 480Y 277 240△ 480△ 600Y 347 |
| 45 | 4160 | 75 | |
| 75 | 4800 | 95 | |
| 112.5 | 7200 | 95 | |
| 150 | 7620 | 95 | |
| 225 | 7970 | 95 | |
| 300 | 11400 | 125 | |
| 500 | 12000 | 125 | |
| 750 | 13200 | 125 | |
| 1000 | 13800 | 125 | |
| 1500 | 14400 | 125 | |
| 2000 | 19920 | 150 | |
| 2500 | |||
| 3000 | |||
IEEE & ANSI C57.12.00, IEEE & ANSI C57.12.34, ANSI C57.12.90
These transformers are designed for typical conditions found in electric power distribution systems. They are suitable for use under the “usual service conditions” defined in IEEE Standard C57.12.00, which outlines general requirements for liquid-immersed distribution, power, and regulating transformers.
