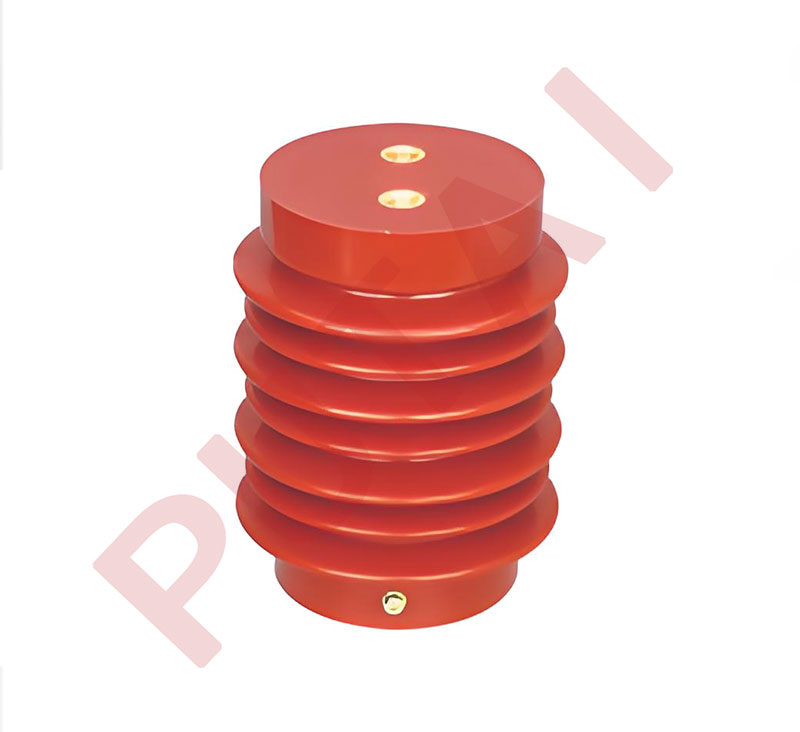

CG5-12KV Series Sensors

The CG5-12KV Series Sensors are designed for 12kV-rated medium voltage power systems, offering excellent insulation performance and structural reliability. Made from high-strength epoxy resin, the sensors provide superior dielectric properties with power frequency withstand voltage up to 42kV and lightning impulse withstand voltage up to 85kV. They are compatible with MV switchgear, RMU, circuit breakers, load switches, and GIS equipment.

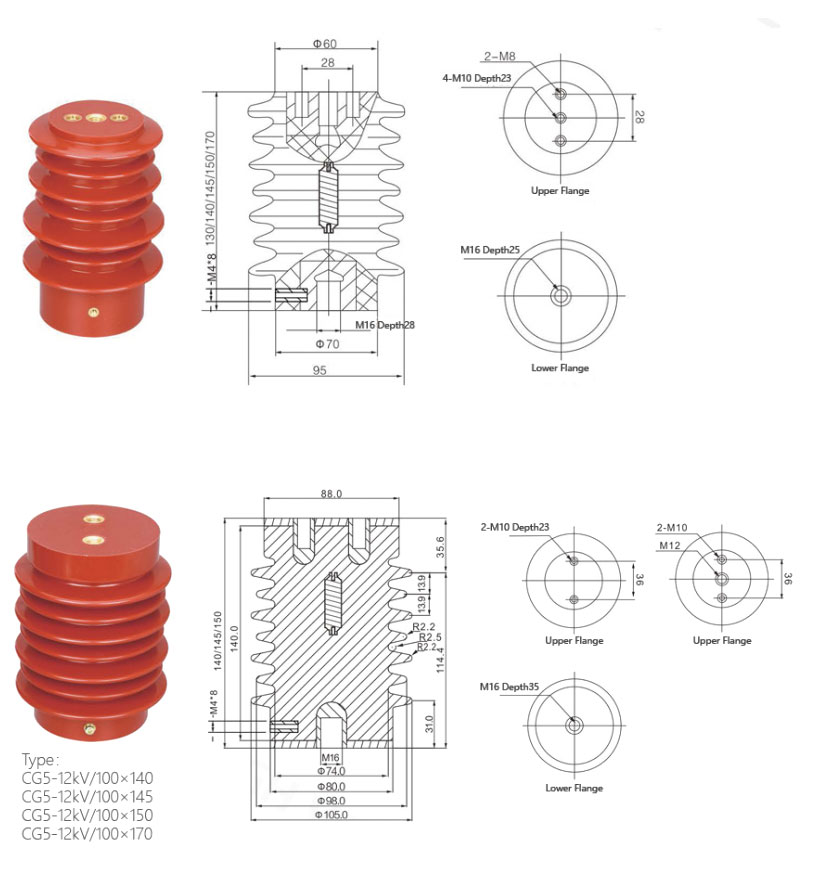

Available in multiple standard dimensions (95×130mm, 95×150mm, 100×170mm), the CG5-12KV series also supports customizable hole distances and installation heights. With compact design and high mechanical strength, these sensors perform reliably even in challenging environments, making them ideal for current detection and protection in various MV distribution applications.
