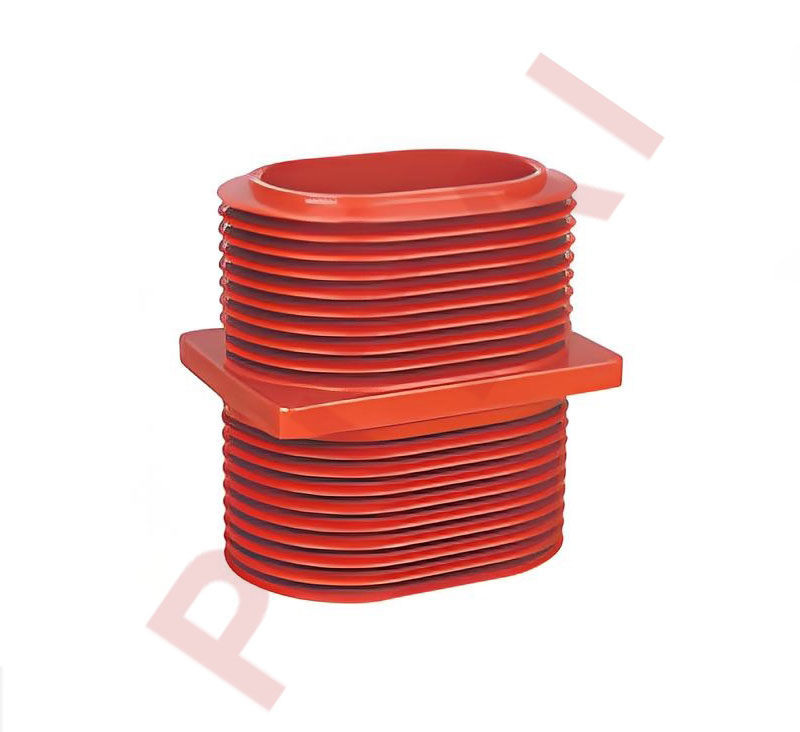

24KV Wall Bushing (175×255×218)

The TG3‑24KV/175×255×218 Wall Bushing is designed for 24 kV medium-voltage systems, with a rated current range of 2000–4000A. It offers a power frequency withstand voltage of 65 kV for 1 minute and a lightning impulse withstand voltage of 150 kV. Made from epoxy resin, copper shielding, and silicone rubber composite insulation, it provides excellent electrical performance and efficient electromagnetic shielding. With an IP68 protection level, it offers outstanding dustproof and waterproof capabilities, ensuring stable operation in various harsh environments.

With an installation size of 175×255×218 mm (outer diameter × length × total height), this wall bushing is widely used for electrical connections and insulation in power equipment such as medium-voltage switches, transformers, and ring main units. Its wide temperature range (‑40℃ to +90℃) ensures stable operation under extreme temperature conditions, making it ideal for industries such as new energy, industrial power, and petrochemicals, where reliability and durability are critical, ensuring efficient operation of power systems in complex environments.
