The FDGE8-12/√3 is a 12kV indoor single-phase epoxy resin discharge coil designed to connect in parallel with high voltage shunt capacitor banks. It rapidly discharges the residual charge in capacitors after power system interruption, ensuring the residual voltage reaches a predetermined safe level within the required time. The coil includes a secondary winding for line monitoring.
This product is mainly applied in capacitor banks and power compensation systems. It supports operation at frequencies of 50Hz or 60Hz and complies with DL/T653-2009, IEC 60044-2, and IEC 61869-1 & 3 technical standards, guaranteeing safe and reliable performance indoors.

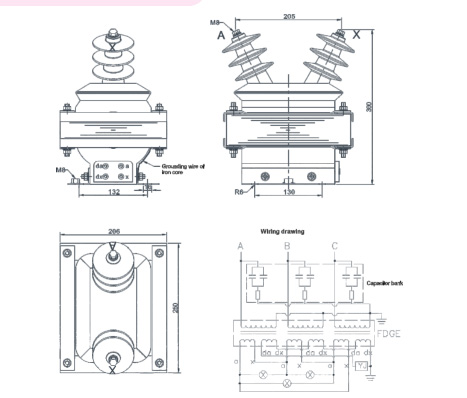

| Type | Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination | Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level (kV) |
| FDGE8-12/√3-1.7-1 | 12/√3 | 0.11/√3/0.11 | 0.5/6P | 30/50 | 500 | 12/28/75 |
