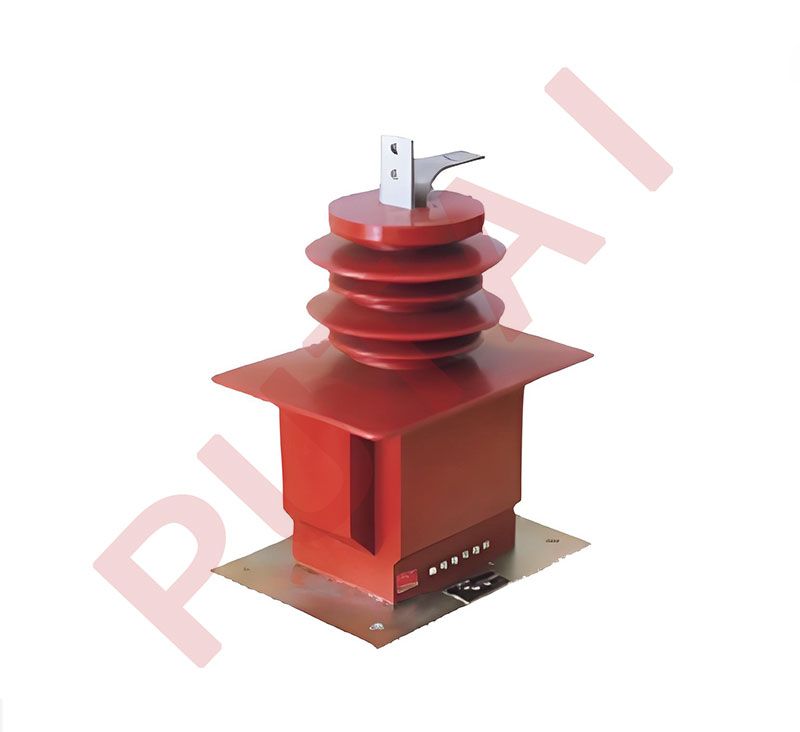

The LZZ7-36 current transformer is a 36kV indoor single-phase epoxy resin casting and fully enclosed support type device. It is designed for accurate metering of current and electric energy as well as protective relaying in medium-voltage electrical systems operating at rated frequencies of 50Hz or 60Hz.
With a rated insulation level suitable for equipment voltages up to 36kV (and up to 40.5kV in some cases), the transformer complies with IEC 60044-1 and IEC 61869-1 & 2 standards. It is ideal for indoor installation and offers reliable performance in various power system applications.
| Rated primary current (A) |
Secondary accuracy classes combination | Rated output (VA) |
Rated short-time thermal current (kA/S) |
Rated dynamic current (kA) |
||
| 0.2(S) | 0.5 | 10P | ||||
| 20-200/5 | 0.2(S)/0.2(S) 0.2(S)/0.5 0.2/(S)10P 0.5/10P 0.2S/0.5/10P 0.2/0.5/10P |
10 15 |
15 | 15 20 |
150l1n | 375l1n |
| 300/5 | 31.5 | 80 | ||||
| 400/5 | 31.5 | 80 | ||||
| 500/5 | 40 | 100 | ||||
| 600/5 | 50 | 125 | ||||
| 800/5 | 63 | 125 | ||||
| 1000/5 | 80 | 160 | ||||
