The LZXW-0.72 is a zero-sequence current transformer featuring epoxy resin vacuum casting insulation. This design provides excellent electrical and mechanical performance, ensuring reliable operation under various conditions.
With strong resistance to moisture and pollution, the LZXW-0.72 is suitable for indoor installations and offers easy mounting due to its compact and aesthetically pleasing design. It supports rated secondary currents of 5A or 1A and withstands power frequency voltage up to 3kV. The product complies with IEC 60044-1 and IEC 61869-1 & 2 standards.
| Type | Ratio (A) | Accuracy class | Rated output (VA) |

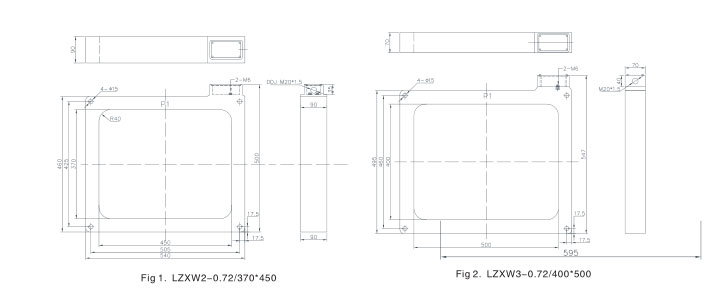

| LZXW3-0.72/370*450 LZXW2-0.72/400*500 |
50/1 | 10P10 | 1 |
| 50/5 | 10P10 | 0.5 | |
| 100/1 | 10P10 | 2 | |
| 100/5 | 10P10 | 1 | |
| 150/1 | 10P10 | 2 | |
| 300/5 | 10P10 | 1 | |
| 500/1 | 5P10 | 10 | |
| 600/5 | 10P10 | 5 | |
| 800/5 | 0.5 | 15 |
