The product is available in single-core and three-core types. The insulation tube of the termination is generally 650mm in length, but it can be extended to 800mm, 1000mm, or 1203mm according to customer requirements. Cross-linked cable heat shrink terminations adopt a dual grounding process. That is, the steel armor grounding wire and the copper screen grounding wire are separated, making cable pre-testing more convenient and reasonable.

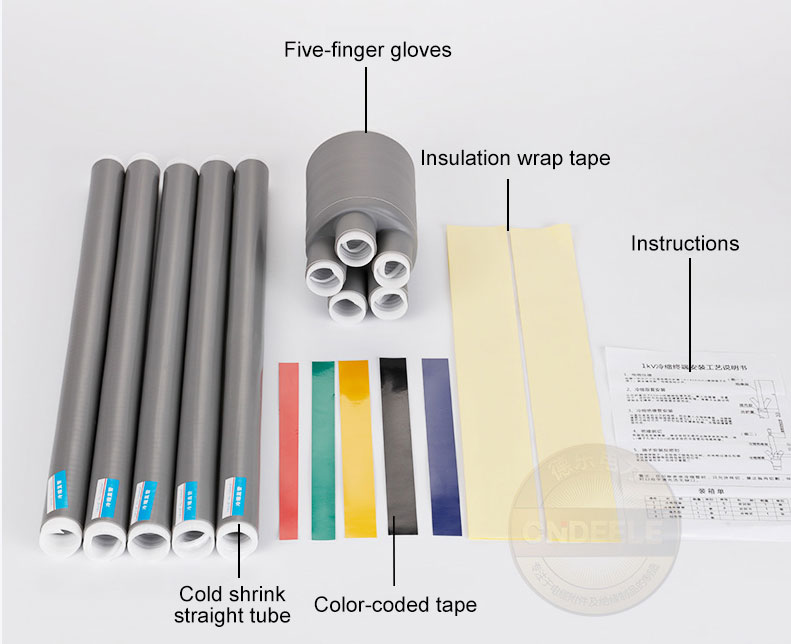

For indoor and outdoor terminations, and at intermediate branch points of oil-impregnated cables, oil-blocking finger sleeves are used to prevent oil leakage, and an insulating finger sleeve is applied externally, ensuring the product is safe and reliable.
| Type | LS-5.0 |
| Rated Voltage | 1kV |
| Power Frequency Withstand Voltage | 1kV |
| 5min Power Frequency Withstand Voltage | 81kV (No Flashover or Breakdown) |
| Partial Discharge Test | <10pC at 30kV |
| 15min DC Withstand Voltage | 72kV (No Flashover or Breakdown) |
| Tensile Strength | >14 |
| Impulse Withstand Voltage Test | 175kV ±10% (No Flashover or Breakdown) |
| Type | Applicable Cable Cross-Section(mm²) |
| LS-1/5.0 | 10~16 |
| LS-1/5.1 | 25~50 |
| LS-1/5.2 | 70~120 |
| LS-1/5.3 | 150~240 |
| LS-1/5.4 | 300~400 |
