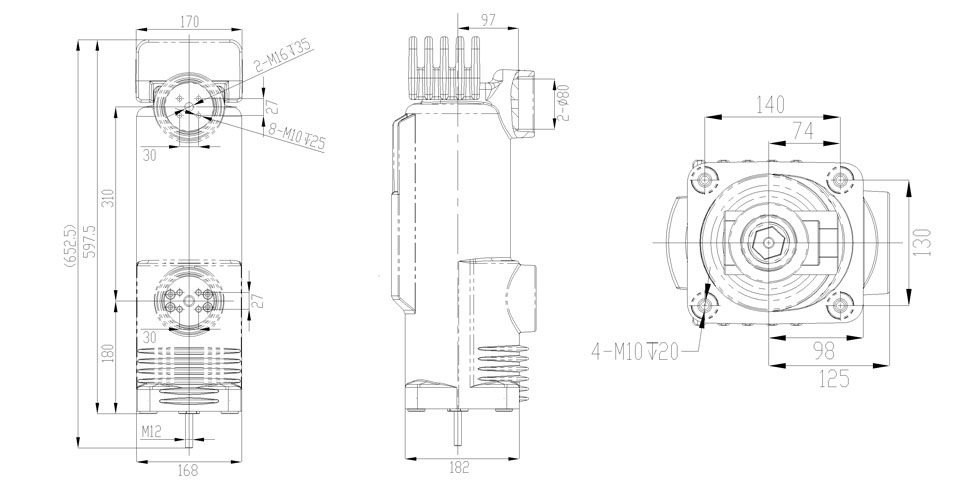

12kV Center Distance 310mm High Current Pole (Old Design)

This 12kV high current embedded pole (old design) is specifically designed for high-current applications in 12kV switchgear and power systems. With multiple rated current options (2500A, 3150A, 4000A), it can handle short-circuit breaking currents of up to 31.5kA and 40kA, ensuring stable system performance under extreme conditions. The short-time withstand current can reach up to 40kA, meeting higher electrical load requirements.

The product offers outstanding voltage withstand capabilities, with a power frequency withstand voltage of 48kV and lightning impulse withstand voltage of 85kV, ensuring stable operation in harsh environments. Made from copper or aluminum alloy with tin or silver plating, it provides excellent conductivity and corrosion resistance, extending the service life of the equipment. The design ensures a mechanical lifespan of up to 10,000 operations, providing reliable performance for long-term high-frequency use.

When paired with a vacuum switch, the product ensures precise control of contact distance and operation speed, facilitating efficient electrical connections and operations that meet the stringent technical standards of power systems.
