ZJ-35KV Series Post Insulators

High Voltage Resistance:Power frequency withstand voltage of 95kV and lightning impulse withstand voltage of 185kV, offering reliable protection.
Epoxy Resin Material:Excellent electrical insulation and weather resistance.
Suitable for High Voltage Equipment:Ideal for high voltage equipment and outdoor isolators.
Reliable Electrical Protection:Effectively prevents lightning and electrical faults from affecting equipment.
Flexible Size Options:Available in various sizes to meet different installation needs.

Get a Quote

Manual Download

Describe Display

The ZJ-35KV Series Post Insulators, made from epoxy resin, are designed for 35kV power systems. This series is suitable for high voltage equipment and outdoor isolators, offering excellent high voltage resistance. With a power frequency withstand voltage of 95kV and lightning impulse withstand voltage of 185kV, these insulators provide reliable protection in extreme conditions.

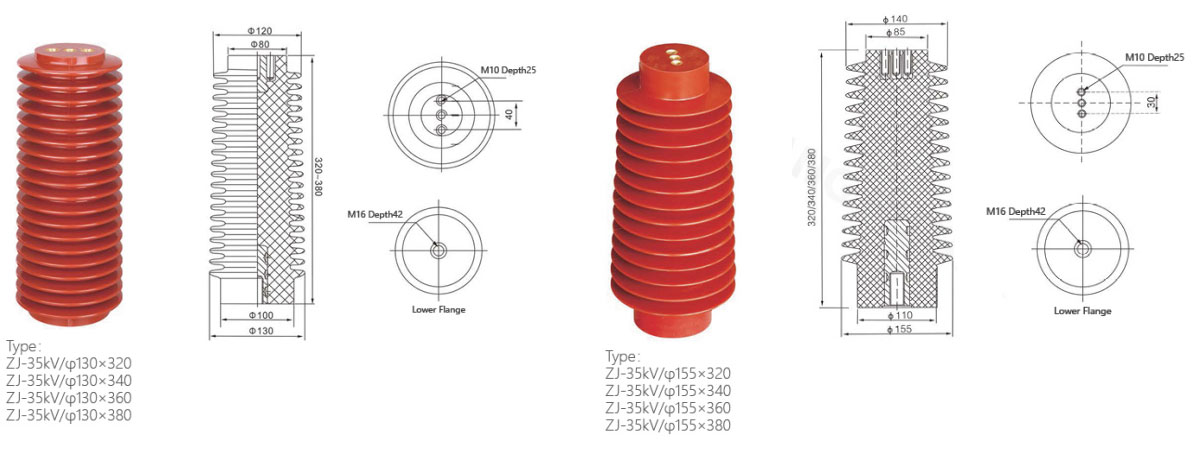

Available in sizes such as φ130×320mm and φ155×380mm, they meet the installation requirements of various electrical equipment.

Product parameters

Model	ZJ-35KV/φ130×320	ZJ-35KV/φ155×380
Dimensions	φ130×320 mm	φ155×380 mm
Rated Voltage	35kV	35kV
Rated Current	2000A	3150A
Power Frequency Withstand Voltage	95kV	95kV
Lightning Impulse Withstand Voltage	185kV	185kV
Material	Epoxy Resin	Epoxy Resin
Applicable Equipment	High Voltage Equipment	Outdoor Isolator
