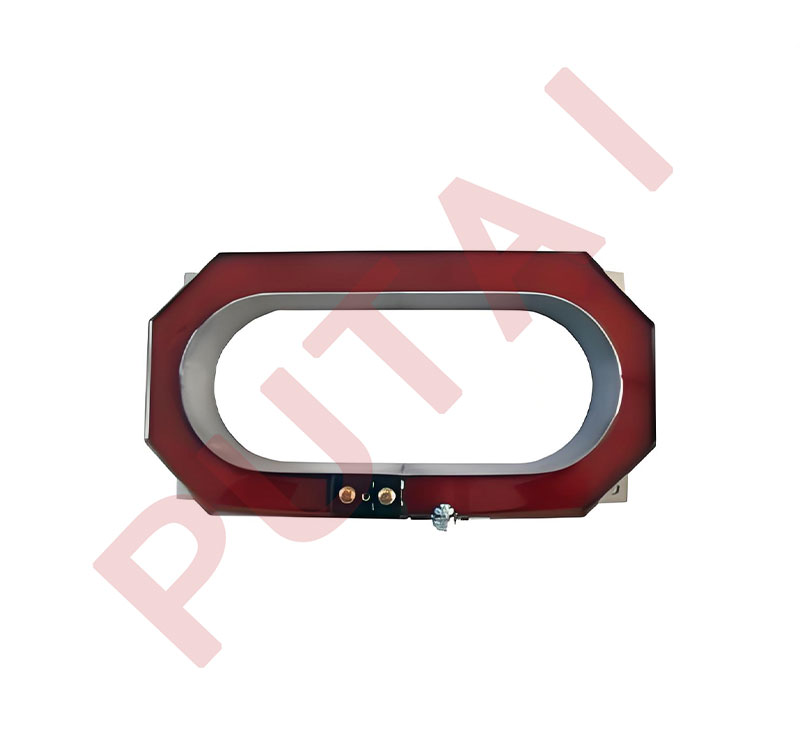

The LXDC-10 Zero-Sequence Current Transformer is designed to interface with signaling and protective relaying equipment, detecting zero-sequence grounding currents in power systems. It acts as an essential component for protective and monitoring functions, helping to safeguard electrical networks. The transformer features a sturdy stainless steel metal shell and a compact structure, enabling easy installation while saving space.
With high accuracy across multiple specifications, this zero-sequence CT is suitable for various power system grounding applications such as neutral grounding, high-current grounding, low-current grounding, and arc suppression coil grounding. It supports secondary currents of 5A or 1A, withstands a power frequency voltage of 3kV, operates at 50Hz or 60Hz, and complies with IEC 60044-1 and IEC 61869-1 & 2 standards for indoor use.

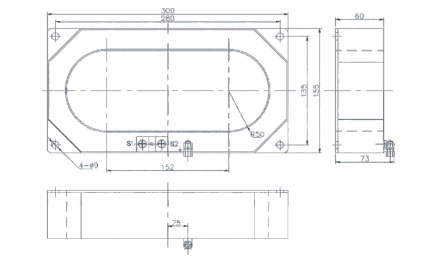

| Type | Measuring current transformer | Protective current transformer | |||
| Rated primary current | Accuracy class and rated burden (VA) | Accuracy class and rated burden (VA) | |||
| 0.5 | 1 | 3 | 10P10 | 10P5 | |
| 20/1 | 0.2 | 0.2 | |||
| 30/1 | 0.4 | 0.5 | |||
| 40/1 | 0.6 | 1 | |||
| 50/1 | 1 | 1 | |||
| 75/1 | 1.5 | 1.5 | |||
| 100/1 | 2.5 | 3.75 | 1.5 | 2.5 | |
| 150/1 | 1.5 | 3.75 | 5 | 2.5 | 5 |
| 200/1 | 2.5 | 5 | 5 | 3.75 | 7.5 |
| 300/1 | 3.75 | 7.5 | 7.5 | 5 | 10 |
| 100/5 | 2.5 | 3.75 | 1.5 | 2.5 | |
| 150/5 | 1.5 | 3.75 | 5 | 2.5 | 5 |
| 200/5 | 2.5 | 5 | 5 | 3.75 | 7.5 |
| 300/5 | 3.75 | 7.5 | 7.5 | 5 | 10 |
