10kV European-style Rear Connector with Surge Arrester

The 10KV European-style rear-mounted surge arrester is a high-voltage cable plug head designed to provide reliable overvoltage protection for electrical equipment. Its core component uses zinc oxide varistor discs, which significantly improve the voltage-current characteristics compared to traditional silicon carbide arresters, enhancing its overvoltage tolerance capability. This product is primarily used in combination with the European 15KV 630A front connector to provide overvoltage protection for the power grid, ensuring the safe operation of electrical equipment.

The surge arrester has high lightning impulse withstand capabilities, capable of withstanding a maximum lightning impulse voltage of 95KV. Its rated voltage is 15KV, with a DC withstand voltage of 52KV for 15 minutes and a rated current of 630A, ensuring safe operation under high load conditions. The minimum corona inception voltage is 11KV, and it can withstand 42KV during the 1-minute power-frequency withstand voltage test, ensuring stable operation even under extreme conditions.

Ordering instructions

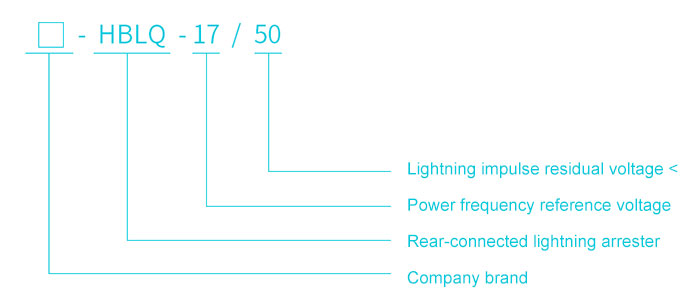

When ordering cable accessory products, please specify the product model, voltage level, current rating, cable conductor material/conductor cross-sectional area, whether a live display device is included, and whether installation services are required.

If the user has any special requirements, please specify them in the contract or contact customer service.
