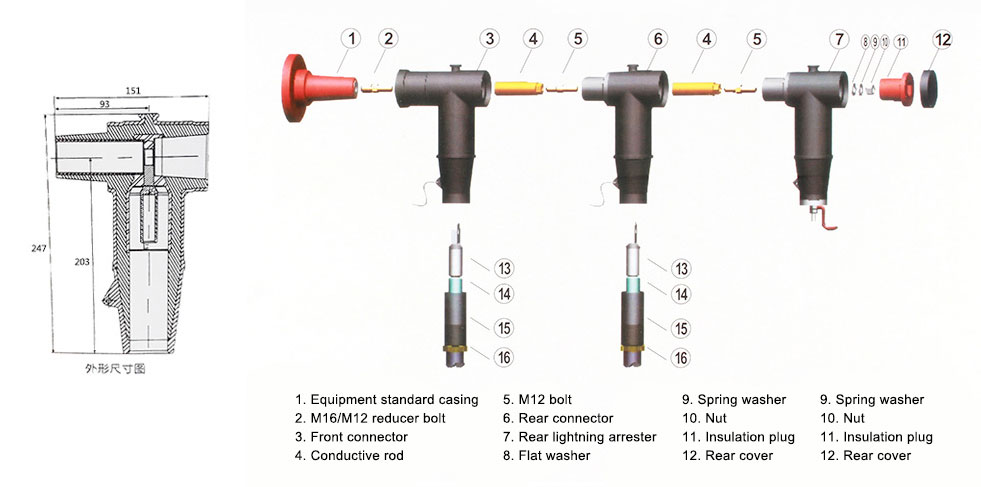

The 10KV European-style rear connector is a high-voltage cable plug head designed to work in combination with the European front connector, providing branching for 630A circuits. It does not directly connect with products like bushings, offering greater flexibility and adaptability. The rear end can be sealed with an insulating plug, or extended to connect another European rear connector or a surge arrester, depending on the system's requirements.
This product is designed to ensure safe operation under high-load conditions, suitable for connecting power grids and electrical equipment, particularly in situations that require branching, providing reliable electrical connections for the power system.

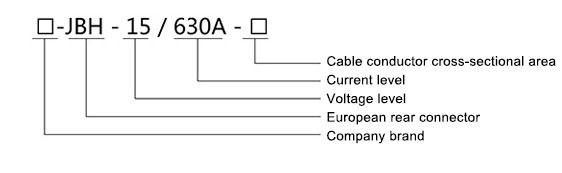

When ordering cable accessory products, please specify the product model, voltage level, current rating, cable conductor material/conductor cross-sectional area, whether a live display device is included, and whether installation services are required.
If the user has any special requirements, please specify them in the contract or contact customer service.
