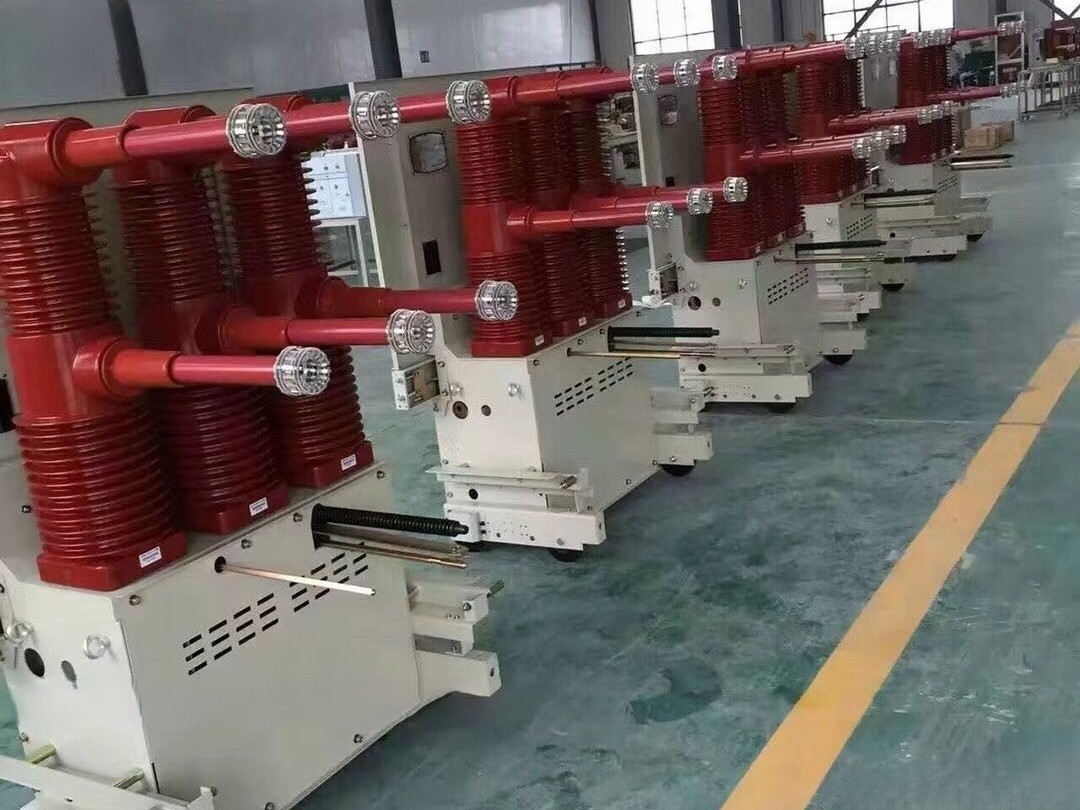

The ZN85-40.5 Indoor High Voltage Vacuum Circuit Breaker is designed, manufactured, and tested to comply with the most rigorous international and national standards, ensuring consistent quality and reliable performance for critical power distribution applications. Understanding the testing and certification framework provides confidence to engineers and procurement specialists selecting protection equipment for substations and industrial facilities.
The ZN85-40.5 complies with GB1984-2003 (the Chinese national standard for high-voltage AC circuit breakers) and IEC 62271-100 (the international standard for high-voltage switchgear and controlgear). These standards define comprehensive type test requirements that validate the breaker's performance under extreme conditions, including short-circuit breaking, mechanical endurance, temperature rise, and insulation withstand capabilities. Compliance ensures that the breaker meets globally recognized safety and performance benchmarks.
Type tests are performed on representative samples to verify design integrity. These include short-circuit breaking tests at rated currents up to 31.5kA, confirming the breaker's ability to interrupt fault currents without damage. Mechanical endurance tests of 10,000 operations validate the operating mechanism's reliability. Power frequency withstand tests at 95kV and lightning impulse withstand tests at 185kV confirm the insulation system's dielectric strength. Temperature rise tests ensure that all components remain within allowable limits at rated currents.
Routine tests are performed on every unit before shipment, providing 100% quality verification. These include main circuit resistance measurements to verify low-resistance connections, mechanical operation tests to confirm correct function of all interlocks and indicators, and power frequency withstand tests to ensure insulation integrity. The vacuum integrity of each interrupter is verified using a power frequency withstand voltage applied across the open contacts—absence of breakdown confirms adequate vacuum.
The breaker's design incorporates features that facilitate ongoing quality verification throughout its service life. The contact wear indicator allows operators to monitor cumulative contact erosion without disassembly. The mechanical operation counter tracks the number of operations, enabling maintenance scheduling based on actual duty. The clear position indicators for open/closed status and handcart test/working positions provide unambiguous state information for operators.
Therefore, the ZN85-40.5's comprehensive compliance with international standards and rigorous testing regime provides the confidence required for critical 40.5kV protection applications worldwide. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For detailed test reports, certification documentation, or quality assurance information, contact our quality team.
