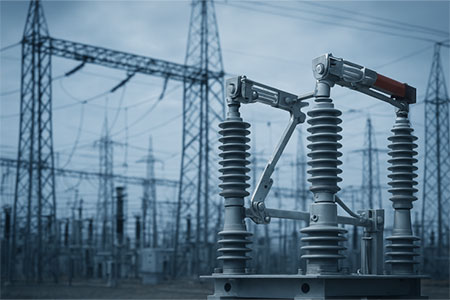

Best Performance Indicators for High Voltage Load Break Switch

High voltage load break switches (LBS) play a crucial role in medium and high voltage distribution networks, providing safe isolation and reliable switching under normal load conditions. For utilities and equipment manufacturers, understanding the key performance indicators of a load break switch is essential to ensure long-term safety, stability, and operational efficiency.

The breaking capacity defines the maximum current the switch can safely interrupt without sustaining damage. A properly selected LBS should have a breaking capacity that exceeds the system’s expected fault current, ensuring secure operation. The rated current, typically ranging from 400A to 1250A for medium-voltage systems, determines the continuous load the switch can carry under normal conditions.

High voltage LBS must withstand both power-frequency and lightning impulse voltages. The dielectric strength of insulation materials—whether air, SF₆ gas, or solid insulation—directly affects switch reliability. For example, a 12kV or 24kV LBS must be tested under IEC or GB standards to ensure compliance with insulation withstand voltage levels.

Mechanical endurance represents the number of operating cycles a switch can perform before maintenance is required. A high-quality LBS should sustain over 2,000 to 5,000 mechanical operations, ensuring long-term service life in distribution substations or ring main units (RMUs).

Low contact resistance ensures efficient current flow and prevents overheating. The temperature rise at rated current should remain within acceptable limits defined by international standards to guarantee safe and stable operation during continuous use.

For outdoor applications, factors such as humidity, pollution level, and altitude must be considered. Enclosed or gas-insulated load break switches offer improved reliability in harsh environments, reducing the risk of arc exposure and insulation deterioration.

For utilities and OEMs seeking reliable solutions, Putai offers a range of high-voltage load break switches designed for dependable performance, stable operation, and long service life under demanding grid conditions. Each product is built with strict adherence to international performance standards and practical usability in mind.
