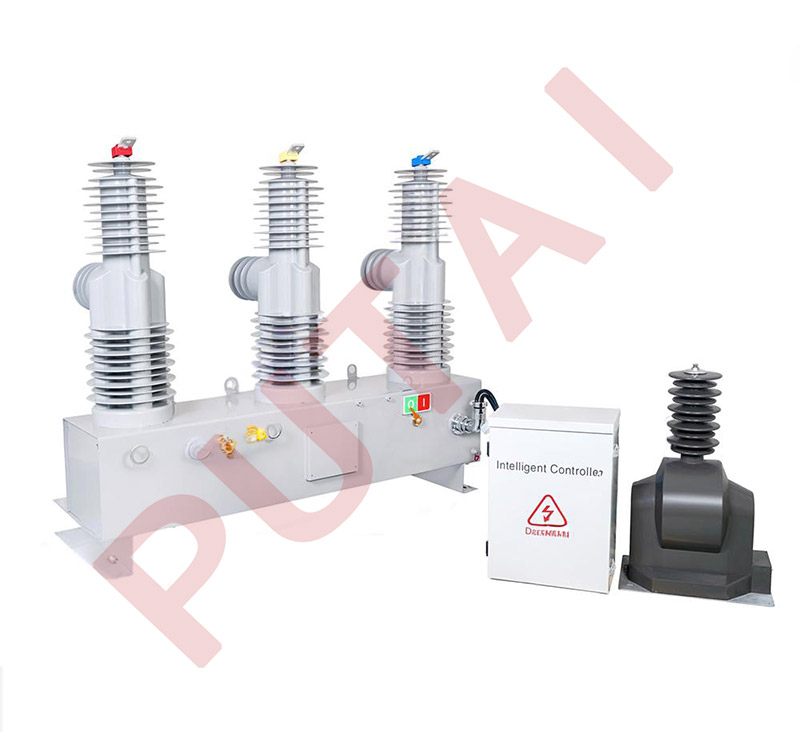

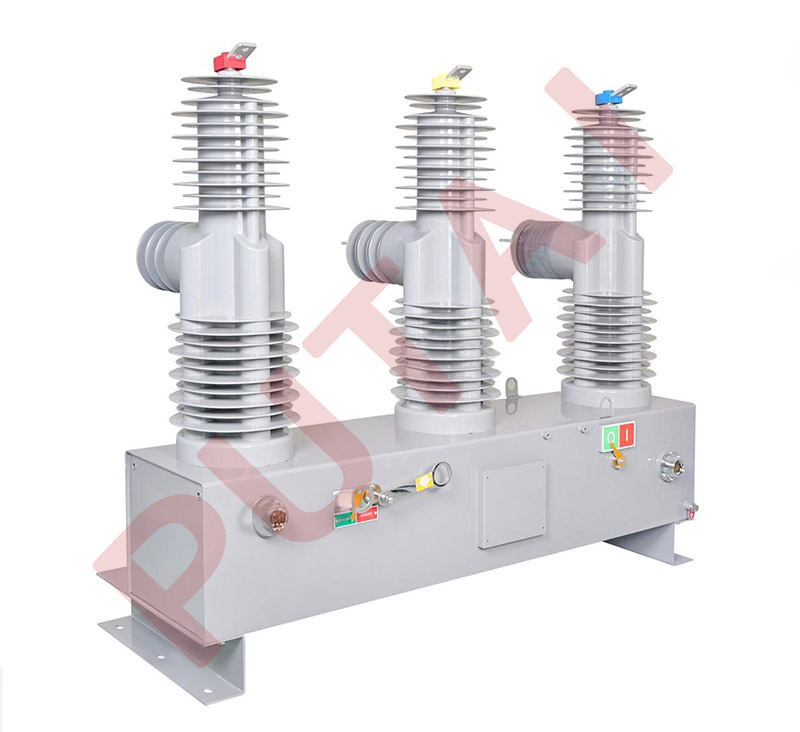

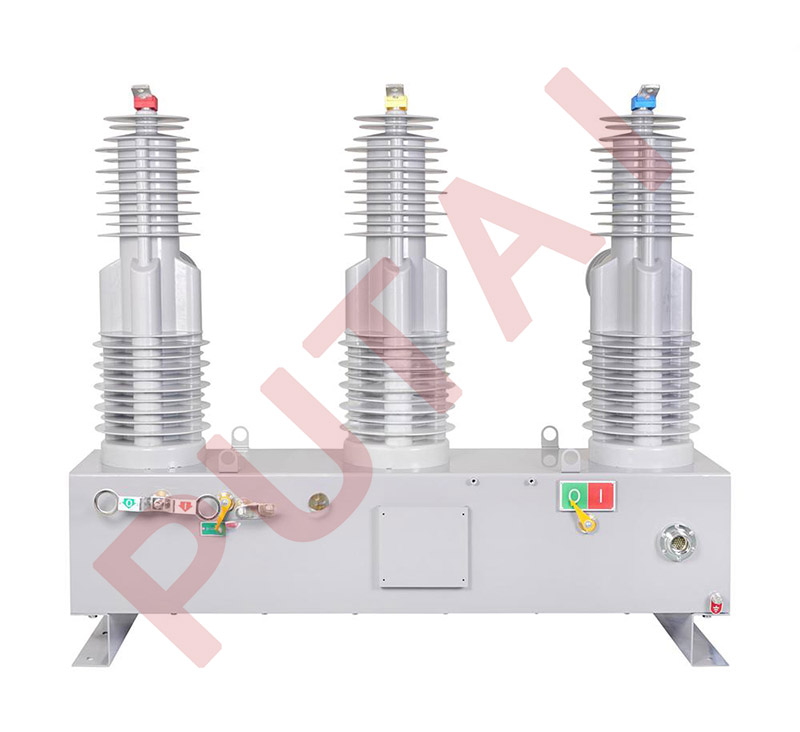

ZW32-36.2kV Outdoor Pole Mounted Vacuum Auto Recloser

  • Vacuum Interruption:Safe, stable breaking; >30,000 operations; maintenance-free
  • Solid Insulation Design:Epoxy and silicone; high UV, temperature, and moisture resistance
  • IP65 Protection:Fully sealed; ideal for coastal, humid, polluted environments
  • Sensor Integration:Built-in voltage, current, and zero-sequence sensors for protection and monitoring
  • Smart Controller Support:IEC 61850-compliant; remote control, signal, measurement, and automation ready
  • Reliable Operating Mechanism:Permanent magnet & spring mechanism; backup action without external power
  • Flexible Communication:Supports remote/local control and GPRS/fiber communication protocols
Describe Display

ZW32-36.2kV is a three-phase AC outdoor vacuum circuit breaker with automatic recloser function, designed for 10–35kV power distribution networks. It adopts vacuum arc interruption and solid insulation technology, integrating vacuum interrupter, voltage/current sensors, and control modules. It is suitable for breaking and making load, overload, and short-circuit currents.



This recloser supports smart grid applications. It can identify transient and permanent faults, isolate faulty sections, and restore power to healthy areas, enabling automated fault handling and minimizing outage areas. It can communicate with the central master station via GPRS, fiber optic, and other protocols.

Product parameters
Recloser Technical Parameters



No. Items Unit ZW32-36.2
1 Rated voltage kV 34.5
2 Maximum operating voltage (Nominal) kV 36.2
3 Rated current A 630/800
4 Rated frequency Hz 50/60
5 Rated short-circuit making kA 12.5/16
6 Rated short-circuit breaking current kA 12.5/16
7 Rated short-time withstand kA 12(16)/3s
8 Rated peak withstand current kA 32.5/42
9 Rated operating sequence   0-0.3s-C0-180s-C0
10 Rated power-frequency withstand voltage (Dry/Wet) kV 70/1min
11 Auxiliary and control circuit kV 2/1min
12 Rated lightning impulse withstand voltage kV 150
13 Switch operations of rated
short-circuit breaking current
bout E2
14 Number of mechanical operations bout 10000
15 Resistance of main circuit μΩ ≤200
16 Protection class: tank   IP65
17 Insulating medium   Vacuum/Air
18 Standards GB1984, GB3804, GB3906,
IEC62271-100/105/200, IEC60265-1.





Control Technical Parameters



Rated voltage DC (V) 24
AC (V) 220
Rated frequency Hz 50/60
Setting value Short circuit fault Setting range of
phase current
A 20-1260
Ground fault Setting range of
zero sequence curren
A 0.1-20
Setting range of
zero sequence voltage
% 1-100
Settingrange of over voltage protection % 110-185
Settingrange of under voltage protection % 25-90
Weight kg 25

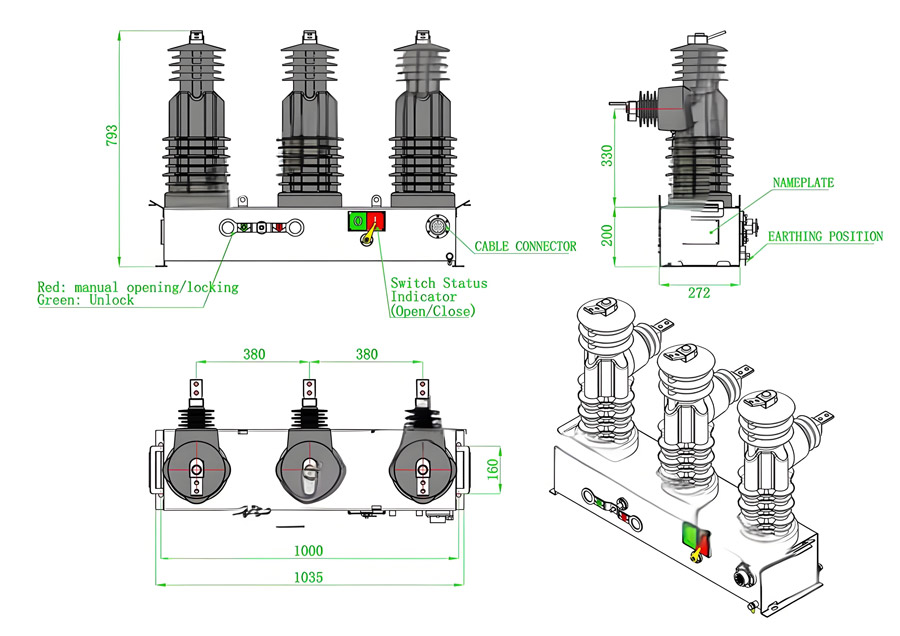

Size/Installation

Features

Three-phase pillar design ensures isolated operation without full-phase failure.



Integrated insulation pole houses all primary components; compact and durable.



Sealed vacuum interrupter embedded in epoxy resin with silicone coating.



Permanent magnet actuator combined with spring mechanism; allows manual or electrical operation.



Capacitive voltage sensors and CTs provide real-time signals for protection and control.

Related Notes
Installation & Configuration



Pole-mounted outdoor design with compact size and lightweight construction.

Can be operated locally or remotely; supports auto reclosing (3–4 times), and locks in permanent faults.

Controller features modular design with DSP & FPGA, Linux-based OS, and rich interface protocols.

Compatible with remote control, telemetry, signaling, and data acquisition systems.



Conditions of Use

Ambient Temp: -40℃ to +60℃

Altitude: ≤2000 m

Wind Speed: ≤34 m/s

Pollution Level: III

Resistant to dust, salt fog, steam, and light vibration





Customized Solutions



The parameters listed above are standard references. If these styles do not fulfill your specific requirements, feel free to reach out to us for a bespoke design. With strong capabilities in personalized development and production, we offer tailored solutions to clients worldwide.
