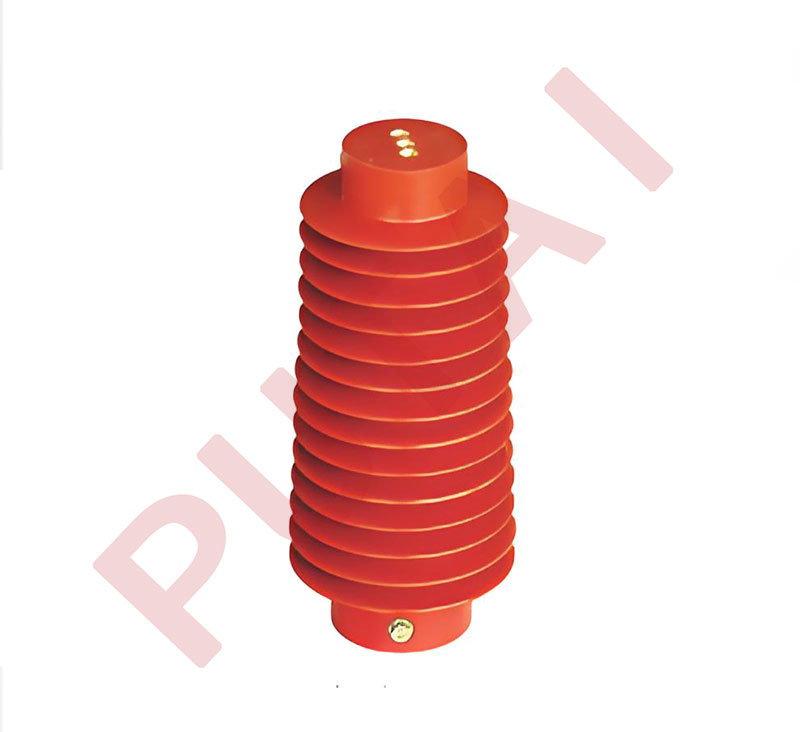

CG5-35KV Series Sensors

High Voltage Tolerance:Rated for 95kV power frequency and 185kV lightning impulse withstand.
Supports High Current:Operates reliably at 2000A and 3150A current levels.
Durable Epoxy Casting:Robust one-piece construction ensures mechanical stability and weather resistance.
Customizable Design:Tailored dimensions and mounting options for diverse applications.
Wide Application Range:Ideal for HV breakers, outdoor switchgear, and substation systems.

Get a Quote

Manual Download

Describe Display

The CG5-35KV Series Sensors are designed for 35kV high-current power systems and are widely used in high-voltage breakers, disconnecting switches, outdoor switchgear, and substation equipment. Constructed with high-quality epoxy resin using integrated casting technology, these sensors offer exceptional insulation and mechanical performance, ensuring system safety under heavy load conditions.

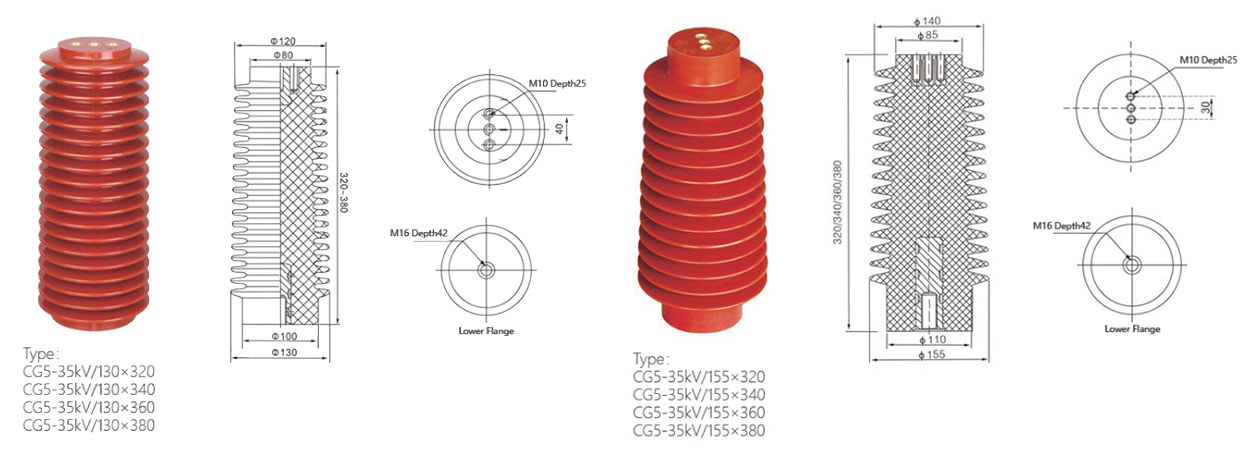

With a power frequency withstand voltage of 95kV and a lightning impulse withstand voltage of 185kV, this series meets the demands of challenging environments. Available in multiple sizes (130×320mm, 155×380mm) with customizable mounting options, CG5-35KV sensors provide a reliable solution for high-current and specialized applications.

Product parameters

Model	CG5-35KV/130×320	CG5-35KV/155×380	Customizable Hole Distance
Dimensions	130×320 mm	155×380 mm	Customizable
Rated Voltage	35kV	35kV	35kV
Operating Current	2000A	3150A	2000～3150A
Power Frequency Withstand Voltage	95kV	95kV	95kV
Lightning Impulse Withstand Voltage	185kV	185kV	185kV
Material	Epoxy Resin	Epoxy Resin	Epoxy Resin
Applicable Equipment	High Voltage Breaker	Outdoor Switchgear	High Current Equipment
