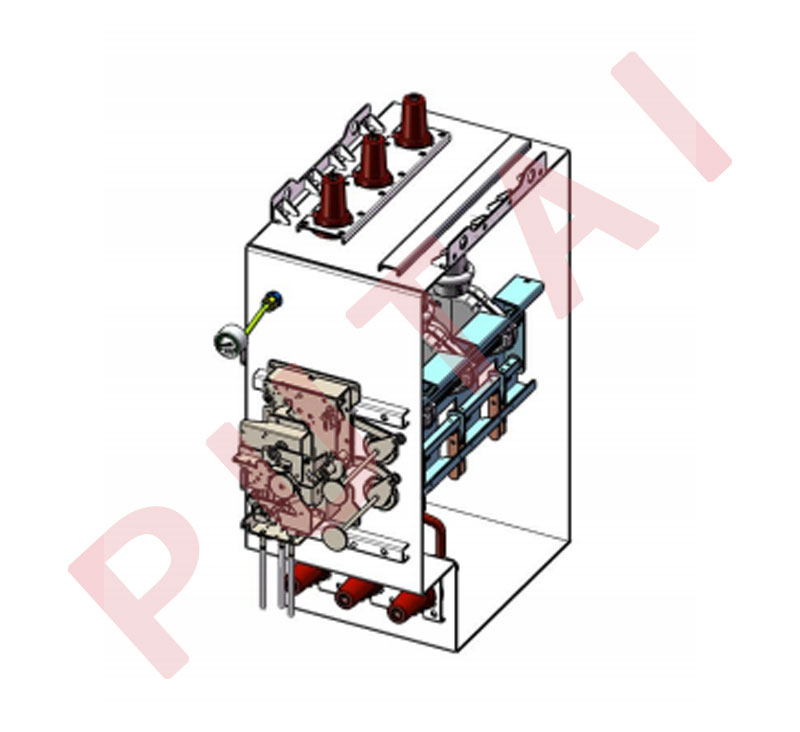

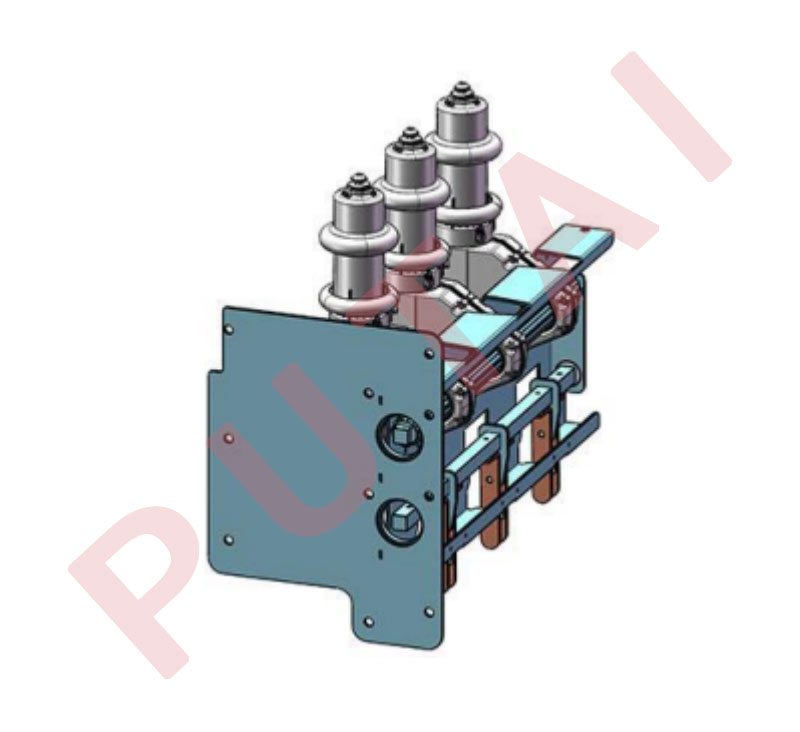

SF6 Gas-Filled Load Switch (40.5kV, 630A)

Rated for 40.5kV and 1250A in a compact layout.
Upper isolator and lower breaker for flexible operation.
CNC-processed and robot-welded for high precision.
Independent pressure relief for personnel safety.
Modular design ensures easy installation and scalability.
Suitable for industrial, commercial, and renewable energy grids.

Shopping Cart Get a Quote Manual Download

Product parameters

Model	Parameters
Rated voltage (kV)	40.5
Rated current (A)	630
Rated frequency (Hz)	50
Rated short-circuit making current (peak)	50
Rated short-time withstand current duration	4
Rated peak withstand current (peak)	50
Rated short-time power frequency withstand voltage (Phase-to-Phase, Phase-to-Earth)	95
Rated Lightning Impulse Withstand Voltage Peak (Phase-to-Phase, Phase-to-Earth)	185
Rated Short-Time Power Frequency Withstand Current (Break)	95
Rated Lightning Impulse Withstand Voltage Peak (Break)	95
Rated Cable Charging Breaking Current	20
SF6 Charging Pressure (Gauge Pressure at 20°C) MPa	0.045
Contact Force	200-300
Three-Phase Non-Simultaneous Contact Opening (ms)	≤2
Three-Phase Non-Simultaneous Contact Closing (ms)	≤2
Circuit Resistance (uΩ)	≤50

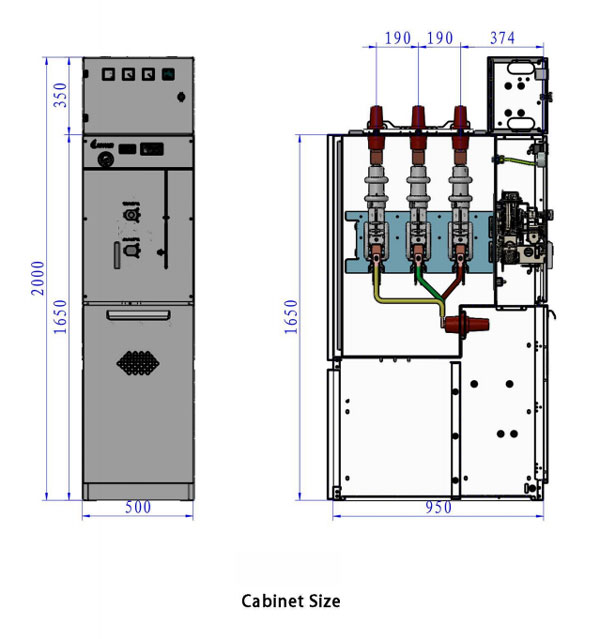

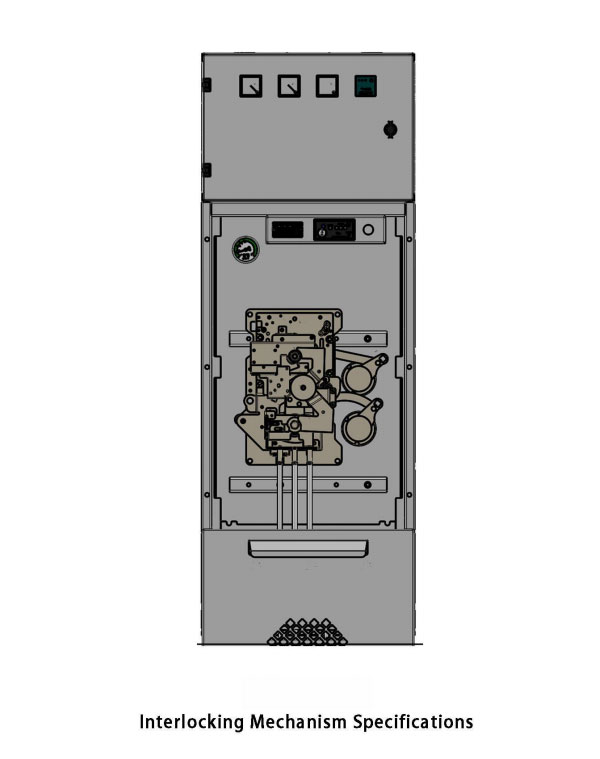

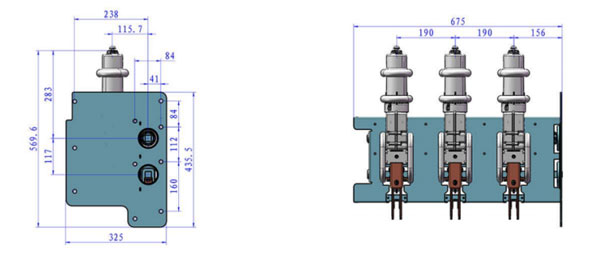

Features

Modular Design: Supports flexible combination/expansion of units (no gas charging/discharging), adapts to high-voltage metering, and suits SF6 fully insulated ring main units/multi-circuit distribution cabinets.

Structural Safety: Armored structure with metal partitions; primary part of fully insulated structure reaches IP67 protection level.

Hermetic & Low-Consumption: 30-year gas tightness (no leakage); corrosion-resistant mechanism (self-lubricating bearings) enables maintenance-free operation, low energy consumption, high reliability, and long service life.

Expandable Busbar: Plug-in silicone connectors (full insulation/shielding) ensure stable conductivity; modular connection eases future capacity expansion.

The equipment operates under normal indoor conditions in accordance with IEC 62271-1 and GB3906.

Environmental Conditions:

Temperature: Maximum +40°C, 24-hour average +35°C, Minimum -40°C.

Humidity: Maximum 24-hour average relative humidity 95%, maximum monthly average 90%.

Altitude Limits:

Can be installed up to 1500 meters without gas pressure adjustment.

Consultation with pre-sales technical support is required for installations above 2500 meters. Reduced atmospheric pressure at high altitudes (≥1500m) can cause the air compartment to bulge.

Special Conditions:

Operation must comply with the named standards. For special or harsh operating environments, an agreement must be reached between the end user and the manufacturer.

More Related Products

Lower Isolator and Upper Circuit Breaker Switch (40.5kV, 1250A)

This switchgear features a lower isolator and an upper circuit breaker configura...

Upper Isolator and Lower Circuit Breaker Switch (40.5kV, 1250A)

This configuration places the isolator above and the circuit breaker below, rate...

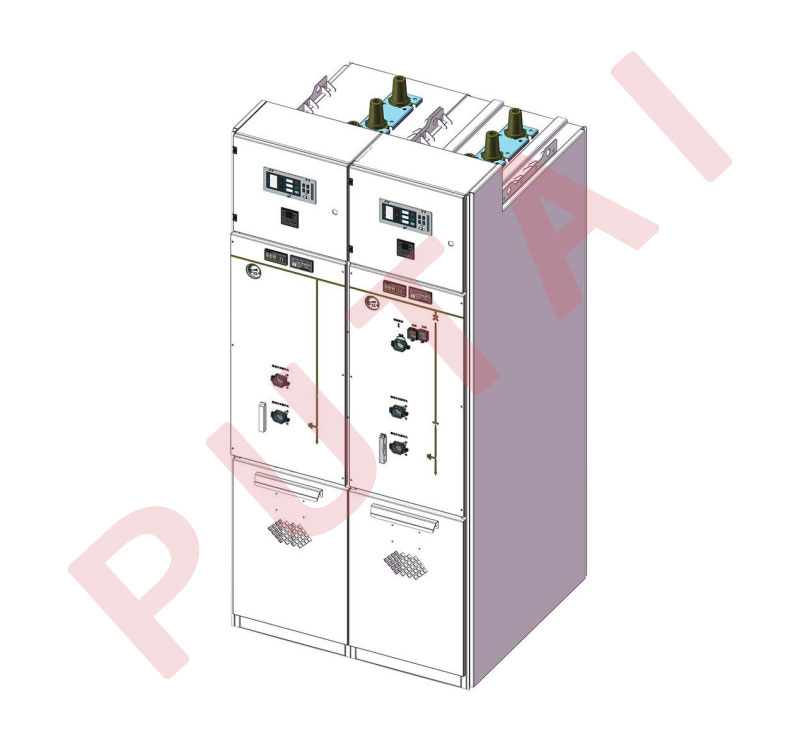

SF6 Inflata ble Ring Cabinet 40.5kV-630A
