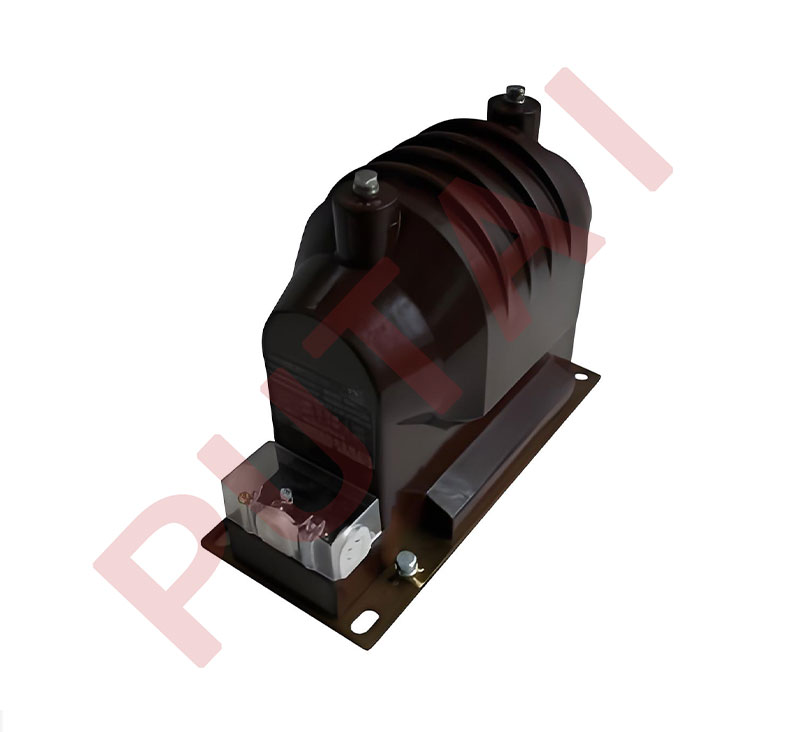

The JDZ9-12Q is a 12kV indoor single-phase epoxy resin voltage transformer featuring epoxy resin casting and double-pole insulation. It is designed for installation inside switchgear cabinets to measure voltage, electric energy, and provide protective relaying in single-phase or three-phase AC circuits with rated frequencies of 50Hz or 60Hz.
This transformer offers high reliability and a low magnetism core, ensuring accurate voltage measurement and stable operation. Maintenance-free by design, it supports a load power factor of cosΦ=0.8 (lagging) and complies with IEC 60044-2 and IEC 61869-1 & 3 technical standards. It is suitable for equipment with voltage ratings up to 12kV in indoor environments.

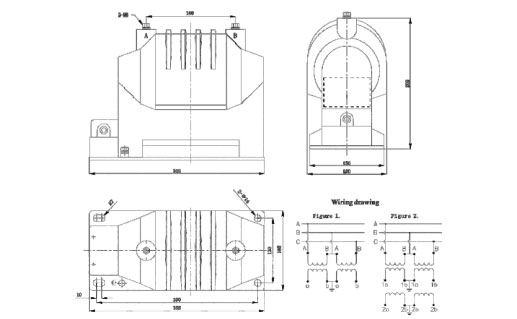

| Type | Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination | Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level (kV) |
| JDZ9-12Q | 11 | 0.11 | 0.2 | 25 | 500 | 12/28/75 |
| 0.5 | 50 | |||||
| 1 | 80 | |||||
| 0.11/0.11 | 0.2/0.2 | 15/15 | 250/250 | |||
| 0.2/0.5 | 15/25 | |||||
| 0.11/0.22 | 0.2/6P(3P) | 15/500 | 500 | |||
| 0.5/6P(3P) | 25/500 |
