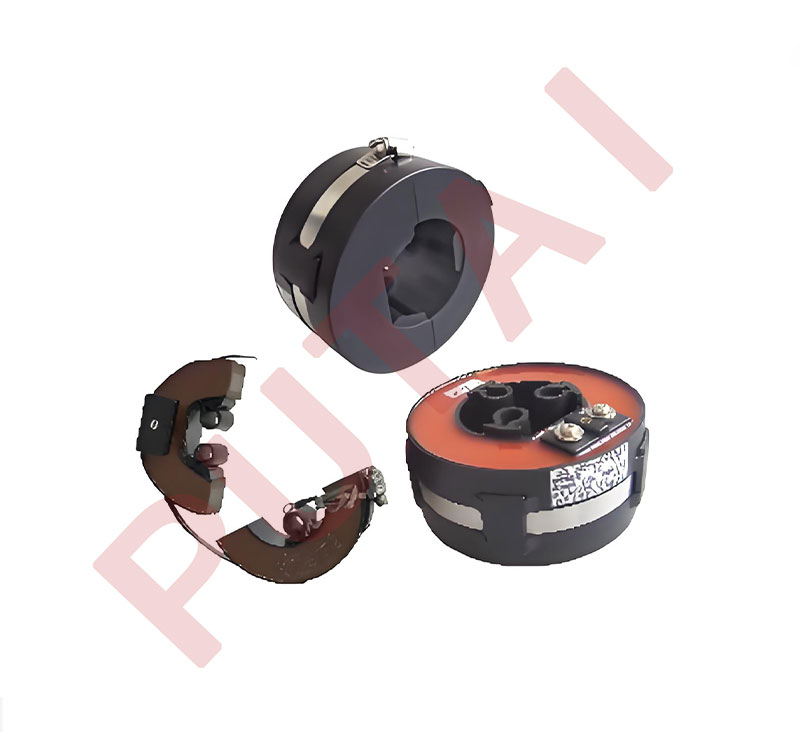

The LMZK-10 Split-Core Current Transformer is designed for Ring Main Unit (RMU) and Compact Gas-Insulated Switchgear (C-GIS) applications, featuring a high-quality epoxy resin poured into a flame-retardant PVC ring housing. It consists of two half-circle metal cores with secondary windings, providing a compact and lightweight solution that requires no maintenance. This split-core design allows the transformer to clamp tightly and uniformly around incoming or outgoing cables of high-voltage switchgear.
The product offers flexible configuration with single or double ratio options and two installation methods: plastic waistband or stainless steel waistband. It is compatible with cables ranging from 35 mm² to 500 mm² and rated for 12kV systems. The LMZK-10 supports rated secondary currents of 5A or 1A, withstands power frequency voltages of 3kV, operates at 50Hz or 60Hz, and is intended for indoor use following IEC 60044-1 and IEC 61869-1 & 2 standards.

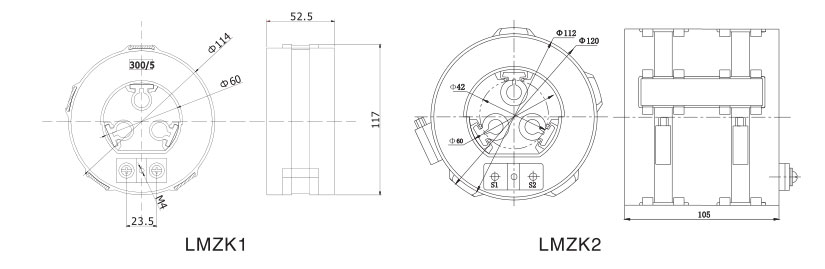

| Type | LMZK1-11C | LMZK1-11P | LMZK1-11CP | |||||||
| Purpose | Measuring current transformer | Protection current transformer | Double winding current transformer | |||||||
| Ratio | Accuracy class and rated burden(VA) Accuracy class and rated burden(VA) Accuracy class and rated burden(VA) | |||||||||
| 0.5 | 1 | 3 | 10P15 | 10P10 | 10P5 | 0.5 | 1 | 10P10 | 10P5 | |
| 50/5 | 2.5 | |||||||||
| 75/5 | 2.5 | 1.5 | ||||||||
| 100/5 | 2.5 | 2.5 | ||||||||
| 150/5 | 2.5 | 1.5 | 3.75 | |||||||
| 200/5 | 2.5 | 5 | 2.5 | 5 | ||||||
| 300/5 | 2.5 | 5 | 1.5 | 2.5 | 5 | 2.5 | 1.5 | |||
| 400/5 | 5 | 5 | 1.5 | 2.5 | 5 | 2.5 | 2.5 | |||
| 500/5 | 5 | 5 | 2.5 | 3.75 | 7.5 | 2.5 | 2.5 | |||
| 600/5 | 5 | 5 | 2.5 | 5 | 10 | 2.5 | 2.5 | |||
