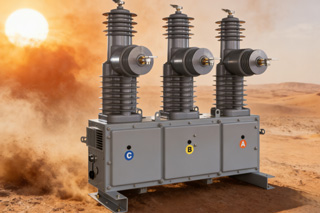

The OVR-38/800-16 three-phase recloser is an outdoor high-voltage distribution switchgear with a rated voltage of 38kV and three-phase AC 50/60Hz. Recloser is used for overhead lines and substations. Like circuit breakers, it can cut off normal and fault currents. It is equipped with sampling sensors and controllers as protection and control devices.
When the line fails, it can quickly protect and trip to avoid longer power outages, up to 4 reclosures. In case of instantaneous faults, fast power transmission is achieved through reclosing. Suitable for substation feed out switches, implementing coordinated actions between reclosers and reclosers, reclosers and sectionalizers. In the event of a line failure, it can automatically disconnect and reclose multiple times, thereby significantly improving power supply reliability.
| Serial Number | Parameter Name | Unit | Numerical Value |
| 1 | Rated Voltage | kV | 38 |
| 2 | Rated Frequency | Hz | 50/60 |
| 3 | Rated Current | A | 800 |
| 4 | Rated short-circuit breaking current | kA | 16 |
| 5 | Rated peak withstand current (peak) | kA | 40 |
| 6 | Rated short-time withstand current (3S) | kA | 16 |
| 7 | Rated short-circuit closing current (peak) | kA | 40 |
| 8 | Mechanical life | time | 20000 |
| 9 | Rated short-circuit breaking current breaking times | time | 30 |
| 10 | Power frequency withstand voltage (1min): phase to phase, ground/fracture | kV | 70 |
| 11 | Lightning impulse withstand voltage (peak): phase to phase, ground/fracture | kV | 170 |
| 12 | weight | kg | 150 |
| 13 | length | mm | 1034 |
| 14 | width | mm | 525 |
| 15 | height | mm | 1030 |
The main chassis is made of 3mm thick high-quality stainless steel plate, which has high strength and strong corrosion resistance；
