Single phase recloser

Low current power sensing：Can work on a line current above 1A (for 40A model) or 2A (for 100A model and 20 0A model), it gets power from line current.
Current sensors：There is a current sensor insides RYDR, it covers both class 0.5 and class 5P, as it is a low-po wer coil but not a regular current transformer.
Various protections：Support reclosing up to 3 times,Support instant trip/delayed trip/time-inverse trip including IEC and ANSI curves.
Local & Remote operations：With a single hot stick, RYDR can be operated Open or Close. RYDR can also be oper ated through a WIFI to collect event logs or perform Open or Close operations without using any cables due to the RF connection.

Shopping Cart Get a Quote Manual Download

Describe Display

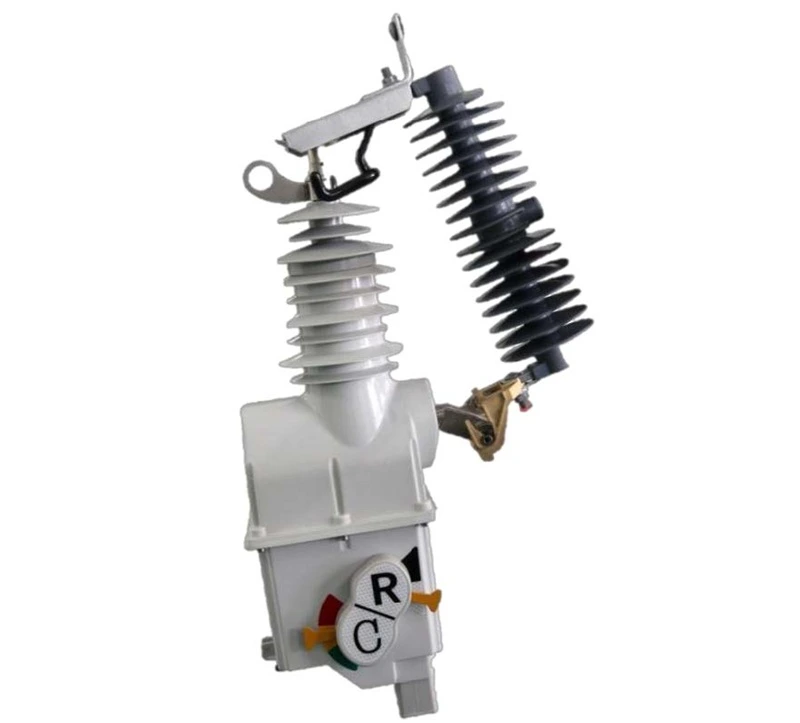

RYDR is a lightweight outdoor vacuum switch adopting cutout mounted structure, solid polymeric insulation and vacuum interrupting medium. It weighs only 12kg with IP66 protection degree. Two voltage ratings (27kV and 15.5kV) and three continuous current options (40A/100A/200A) are available, compatible with 50/60Hz power grid.

Integrated with self-powered sensing, high-precision current acquisition, multi-type relay protection, reclosing and wireless remote control functions, it perfectly fits harsh outdoor distribution network operating conditions.

Product parameters

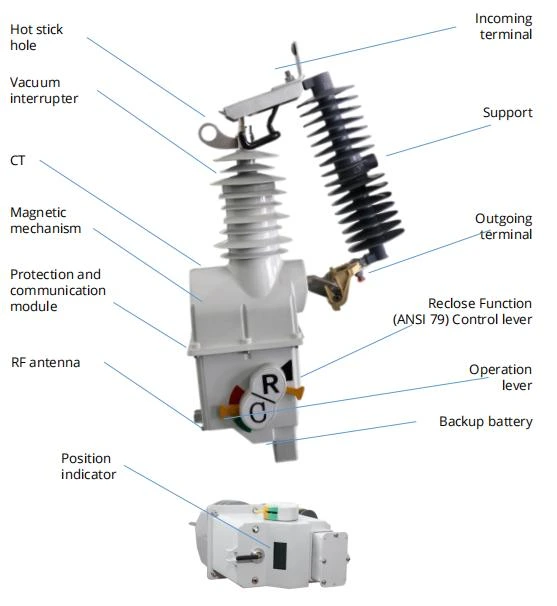

Single phase recloser diagram
