The FLN36-12D SF6 Load Switch is designed for maintenance-free operation under normal conditions, with an expected service life exceeding 20 years . However, proper gas management practices ensure this longevity and provide early warning of potential issues. This guide outlines best practices for SF6 gas monitoring and long-term maintenance of FLN36 series switches.
The switch is factory-filled with SF6 gas to a rated pressure of 0.04-0.05 MPa (gauge pressure at 20°C) . A temperature-compensated pressure gauge mounted on the front panel displays the relative pressure. Because SF6 pressure varies with temperature, readings should be interpreted against the gauge's marked reference zones—typically colored green for normal operation, yellow for caution, and red for alarm .
Annual pressure checks are recommended as part of routine substation inspection. The allowable maximum annual leakage rate is 1% per IEC standards . A pressure reading consistently below the marked zone (allowing for temperature correction) indicates a leak that requires investigation. Minor leaks (≥0.01 MPa/year below rated) may be tolerable but should be monitored; major leaks require immediate attention and repair using proper SF6 handling equipment.
The switch operates reliably across a temperature range of -15°C to +40°C under standard service conditions. For installations in extreme cold (below -15°C) or locations with frequent thermal cycling, optional low-temperature gas mixtures or supplemental heating may be recommended to prevent pressure-related density variations that could affect dielectric performance. Special service condition derating applies for altitudes above 1000m .

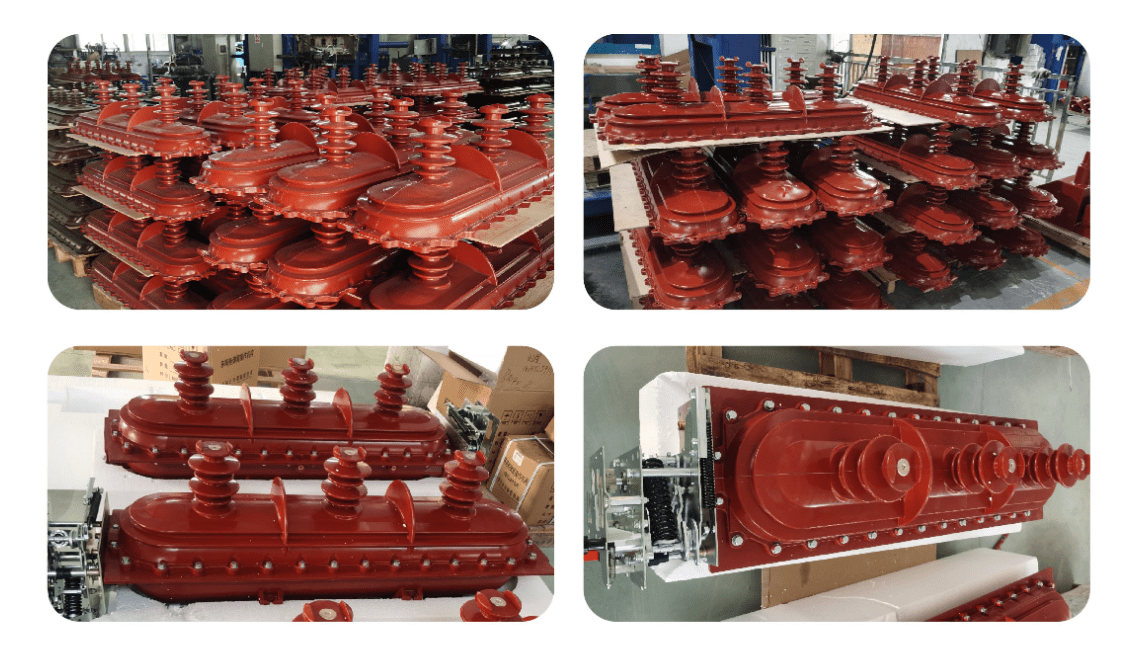

At end of life, the SF6 gas must be recovered and recycled using certified SF6 recovery equipment—venting SF6 to atmosphere is prohibited by environmental regulations in most jurisdictions. The sealed epoxy enclosure can be recycled after gas removal. Putai offers take-back programs in major markets to facilitate compliant disposal. For normal operation, no internal maintenance is required—the sealed design eliminates contact cleaning, lubrication, or adjustment .
Therefore, minimal but informed gas monitoring is all that is typically required to ensure FLN36-12D reliability over decades of service. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For training on SF6 handling procedures or to schedule gas management consultations, contact our service team.
