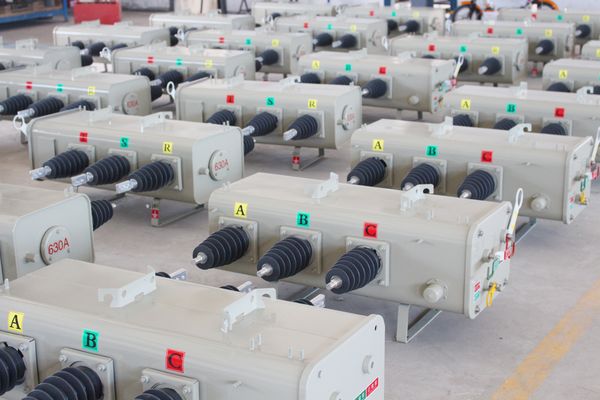

The PGS-12/24/40.5/630-20 Outdoor SF6 Load Break Switch is engineered to perform reliably across the world’s most diverse and challenging grid environments. Unlike standard switchgear limited to temperate conditions, the PGS family offers tailored specifications for high-altitude plateaus, coastal humidity, arctic cold, and desert heat, making it a truly global solution for distribution automation.
For high-altitude regions (e.g., the Tibetan Plateau or Andean mountains), the PGS maintains full insulation integrity up to 3000m with derated options for higher elevations . The robust 304L stainless steel sealed tank protects against low air density and UV radiation, ensuring consistent arc extinction where air-insulated gear fails. In coastal and tropical zones, the IP54 protection and EPDM rubber bushings (creepage distance up to 1250mm) resist salt spray, condensation, and pollution class IV environments seamlessly .
For extreme continental climates, the PGS operates across a wide temperature range of -40°C to +70°C . It utilizes a spring energy storage mechanism unaffected by lubricant freezing or thermal expansion, guaranteeing rapid switching (<0.1 sec) even in harsh winters or summer heatwaves. This design ensures utilities in Canada, Siberia, and the Middle East can standardize on a single platform.
Additionally, the PGS adapts to specific grid codes (IEC, GB). By adjusting the SF6 gas pressure (0.05 to 0.1 MPa at 20°C) and creepage distances, it meets diverse insulation requirements without hardware changes, reducing inventory complexity for global EPC projects.
Therefore, whether for a rural grid in Africa or an industrial zone in Northern Europe, the PGS series provides a flexible, high-reliability switching solution tailored to local environmental and operational demands. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs.
(Article content references network resources.)
