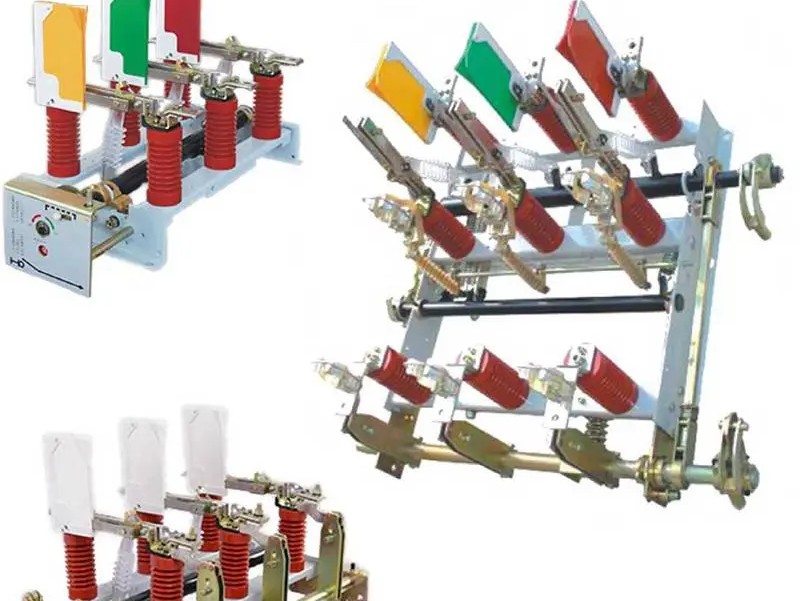

Proper installation, commissioning, and maintenance are essential to ensure the long-term reliability and safety of the FN7-12 indoor load switch and switch-fuse combination units. Following established procedures maximizes service life and minimizes operational risks in 12kV distribution applications. This guide provides best practices for field personnel based on industry standards and manufacturer recommendations .
Installation Requirements:
The FN7-12 must be mounted vertically on a rigid wall or metal structure using 4-6 M12 bolts at the designated mounting holes . Ensure the mounting surface is level and capable of supporting the switch's weight without deflection. For side-operating versions (FN7(C)-12), verify that the cabinet side panel has adequate clearance for handle operation through its full travel . All primary connections should be torqued to manufacturer specifications—typically 25-30 N·m for M10 busbar connections.
Commissioning Verification:
Before energizing, perform at least five manual opening and closing operations to verify mechanical function . The operating handle should move smoothly through its arc with consistent resistance; any binding or hesitation indicates misalignment requiring correction. Verify that the position indicator correctly displays "open" and "closed" status. For combination versions (FN7-12R), confirm that the fuse striker mechanism is properly aligned and that the tripping linkage operates freely .
Operation Procedures:
The standard operating sequence for manual versions uses a CS6 handle . Handle up is closed, handle down is open. Earthing switch operation (on versions so equipped) follows the opposite logic. Always verify the position indicator before relying on switch status. For combination units, a blown fuse will mechanically trip the switch open; examine all three fuses to identify the operated phase before replacement .
Routine Maintenance:
The FN7-12 is designed for minimum maintenance under normal service conditions . Recommended periodic checks include:
Troubleshooting Common Issues:
If the switch fails to close properly, verify that the earthing switch (if present) is fully open and the interlock is released. If the switch fails to open under load, check the operating linkage for obstructions. For combination units, a switch that cannot be closed may have an operated fuse requiring replacement . Always follow lockout/tagout procedures before performing any internal inspection or maintenance.
Therefore, following these installation, commissioning, and maintenance best practices will ensure the FN7-12 delivers its full rated performance and service life. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For technical support or training on FN7-12 installation and maintenance, contact our service team.
(Article content references network resources.)
