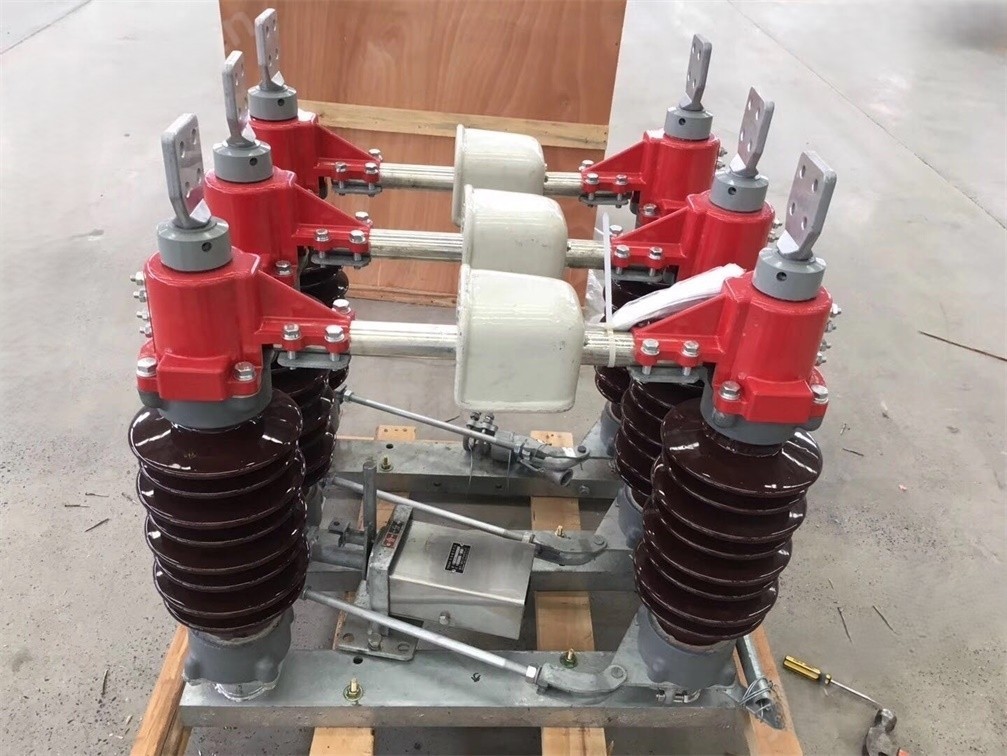

The GW4 Series Outdoor High Voltage Disconnector features a proven double-column center-break design that has become an industry standard for 40.5kV to 126kV outdoor isolation applications. This mechanical configuration, where two insulator columns rotate horizontally to open the circuit at the center, offers exceptional visibility of the open gap and reliable performance across a wide range of environmental conditions . The center-break geometry inherently provides a large, visible isolating distance that exceeds standard clearance requirements .
A key innovation in the GW4 series is the self-cleaning contact system. Unlike traditional designs where fixed contact springs are vulnerable to corrosion and thermal degradation, the GW4 employs contact fingers manufactured from new high-strength, high-conductivity, and high-elasticity materials . These fingers generate their own clamping force without relying on external springs, eliminating failure modes associated with spring corrosion (weakened grip) or thermal annealing (increased resistance and overheating).
The double-column configuration also enhances operational safety. When the switch is open, the visible break distance is immediately apparent to operators performing lockout/tagout procedures. The center-break design requires minimal rotational force—just 90° of movement—achieved through precision bearings and sealed rotating bases . The mechanical life is rated for 2000 operations, verified through rigorous type testing per GB1985 and IEC62271-102 standards .
For maintenance accessibility, the center-break design allows each phase to be inspected and serviced independently. The contact surfaces are arranged such that the self-cleaning wiping action during opening and closing removes oxidation and contamination, preserving low contact resistance without specialized cleaning . The contact fingers can be individually replaced if worn, extending overall service life significantly beyond the rated mechanical endurance .
Therefore, for utilities and industrial facilities requiring reliable, visible isolation with minimal maintenance, the GW4's double-column center-break design with self-cleaning contacts delivers field-proven performance. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For detailed dimensional drawings and technical specifications for your voltage rating, contact our engineering team.
