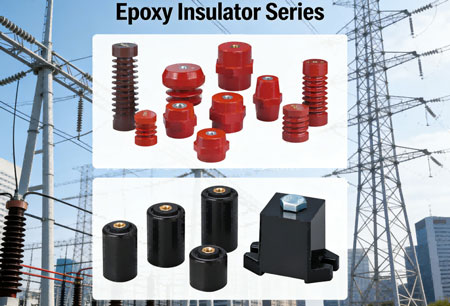

Selecting the Right Epoxy Insulator Series for Your Application

In modern power distribution and substation equipment, the performance and reliability of epoxy insulators are critical to system integrity. Selecting the correct type is essential for ensuring long-term safety and minimizing maintenance in demanding environments, from compact switchgear to outdoor substations.

For high-voltage connection and support within substation and switchgear applications, the ZJ Series 12kV/24kV Post Insulators offer an optimal solution. Manufactured with high-grade cycloaliphatic epoxy resin, these post insulators provide exceptional tracking resistance, mechanical strength, and long-term performance stability. Their design is rigorously tested to comply with major international standards, ensuring high-quality compliance and reliability in medium-voltage systems.

In busbar insulation and support, the SM Bus Bar Insulator (DRUM type) stands out. Its unique drum shape and thermosetting insulation material ensure uniform dielectric stress distribution and superior creepage distance. This design makes it one of the best materials for thermoplastic insulators in terms of durability and resistance to environmental contaminants, which is vital for substation busbar reliability.

The choice between post and busbar epoxy insulators depends on specific electrical, mechanical, and environmental requirements. Key selection factors include rated voltage, BIL (Basic Insulation Level), mounting configuration, and the presence of corrosive atmospheres. Proper matching of the insulator to its application is fundamental for achieving performance stability and system longevity.

Putai supplies a comprehensive range of high-performance epoxy insulators, including the ZJ Series and SM Bus Bar Insulator. Each product is engineered for high-quality compliance and performance stability. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For tailored insulator solutions that enhance your system's reliability, contact our technical team.
