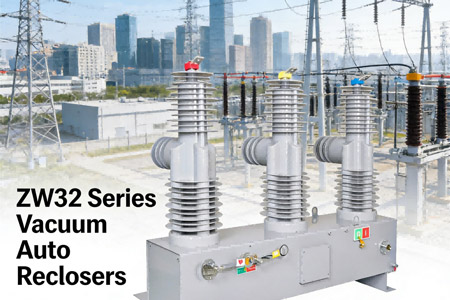

Selecting the Right Outdoor High Voltage Device: ZW32 Series Vacuum Auto Reclosers

12 10, 2025

Posted By: Peter

In modern power distribution networks, outdoor pole-mounted equipment plays a crucial role in enhancing grid reliability, automation, and protection. For effective fault management and system continuity, choosing the right high voltage device is essential. The ZW32 series of outdoor pole-mounted vacuum auto reclosers and circuit breakers offers versatile solutions tailored to various voltage requirements and operational needs across utility and industrial applications.

The ZW32-12kV Outdoor Pole-Mounted Vacuum Circuit Breaker and ZW32-12kV Intelligent Outdoor Pole Mounted Vacuum Circuit Breaker are designed for medium-voltage distribution, providing reliable interruption and smart monitoring capabilities. For higher voltage networks, options such as the ZW32-24kV Outdoor Pole Mounted Vacuum Auto Recloser and ZW32-36.2kV Outdoor Pole Mounted Vacuum Auto Recloser deliver robust performance under demanding conditions. These high voltage devices are engineered to withstand harsh environmental exposure while ensuring consistent operation.

In applications requiring intermediate voltage levels, the ZW32-15.6kV Outdoor Pole Mounted Vacuum Auto Recloser bridges the gap between standard medium-voltage and higher distribution voltages. For the upper range of distribution and sub-transmission systems, the ZW32-40.5kV Outdoor Pole Mounted Vacuum Auto Recloser offers enhanced dielectric strength and interruption capacity. Each model in the series shares core benefits, including vacuum interruption technology, durable enclosures, and modular design for easy integration.

The versatility of the ZW32 series makes it suitable for diverse scenarios—from rural overhead lines to reinforced urban grids. These outdoor electrical devices support automated reclosing sequences, reducing outage times and improving power quality. With CCC to intelligent reclosers with communication interfaces, utilities can tailor their protection schemes to specific network characteristics and reliability targets.

Putai provides ZW32 series outdoor vacuum circuit breakers with stable performance, clear rating documentation, and consistent production standards suitable for various project environments. Putai also supports customization and coordinated supply of related medium-voltage accessories for system integration needs.
