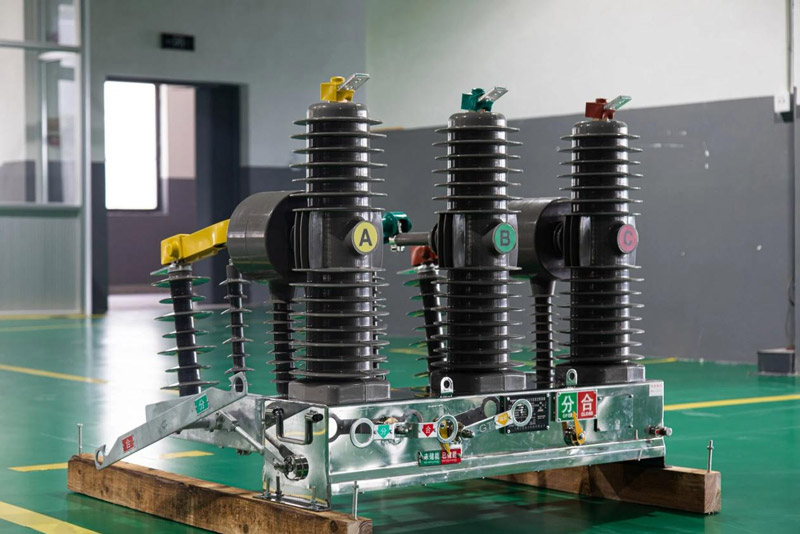

The long-term reliability of an outdoor circuit breaker is fundamentally determined by the integrity of its insulation system. Exposed to sun, rain, pollution, and temperature extremes, the insulating components must resist tracking, erosion, and dielectric failure. The ZW32-12 Outdoor High Voltage Vacuum Circuit Breaker incorporates advanced insulation technologies specifically engineered to maintain its dielectric strength throughout its long service life in the most demanding locations .
A cornerstone of its design is the use of high-performance insulating materials for its primary support structures. The three-phase poles and integrated current transformers are encapsulated using outdoor-grade epoxy resin or, for enhanced performance, silicone rubber . These materials are chosen for their exceptional resistance to UV radiation, ozone, and weathering, which are the primary causes of organic insulation degradation over time .
The ZW32-12 further combats environmental stress through its external insulation profile. The silicone rubber insulators are designed with a hydrophobic surface chemistry. This means water forms beads that simply roll off, rather than forming a continuous conductive film. This property significantly increases the creepage distance effectiveness, making the breaker highly resistant to leakage currents and flashover in conditions of high humidity, fog, or light pollution. It is specifically designed to perform reliably in Class IV pollution levels as defined by international standards .
Internally, the breaker is a study in environmental protection. All live parts and the operating mechanism are housed within a fully sealed, stainless steel enclosure. This hermetic sealing prevents the ingress of moisture, salt fog, and dust, eliminating internal condensation—a common cause of hidden corrosion and insulation failure. This sealed construction ensures that the critical clearances and insulation integrity are maintained regardless of the external weather, from coastal salt spray to industrial pollution .
Therefore, the ZW32-12's insulation system represents a holistic approach to environmental durability. From its UV-resistant external polymers to its hermetically sealed internal chamber, every aspect is designed to preserve dielectric performance for decades. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For switchgear solutions engineered to withstand your site's specific environmental challenges, contact our technical experts.
(Article content references network resources.)
