FKN12A 12D Switch Fuse Installation and Operation Guide

Proper installation and routine maintenance are essential to ensure the long-term reliability and safety of the FKN12A-12D pneumatic load switch-fuse combination unit. As a critical component in 12kV distribution networks, correct handling from receipt through to commissioning directly impacts its performance and operational lifespan. Adherence to established procedures protects both personnel and equipment.

Upon receipt, inspect the unit for any transport damage. Verify that the rated current (630A or 125A) and other nameplate details match the project specifications. During installation, ensure the unit is mounted on a stable, level surface within the switchgear or enclosure. All primary connections must be clean, properly torqued, and made using appropriate lugs to prevent overheating. The earthing switch, with its 20kA/2s short-time withstand rating, must be correctly connected to the station ground grid via a dedicated, adequately sized conductor.

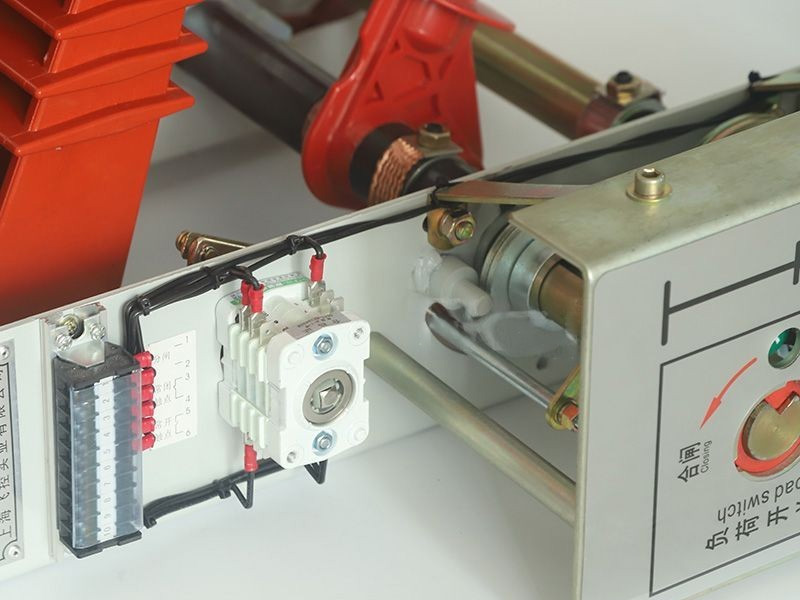

Operationally, the pneumatic mechanism requires periodic inspection of its mechanical linkages and moving parts. While the device is rated for 2000 mechanical operations, regular visual checks for smooth operation, proper contact alignment, and any signs of wear are recommended. The impactor mechanism, linked to the fuses, must be verified for correct travel and trip-free operation during functional testing. Always follow the correct switching sequence, ensuring the load is disconnected before operating the isolating functions.

Routine maintenance should include cleaning external insulators to prevent tracking and checking all bolted connections for signs of loosening or heating. If a fuse operates, all three phases must be inspected, and the cause of the fault investigated before replacing the fuse unit.

Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For comprehensive installation and maintenance support, our technical team is available to provide guidance.
