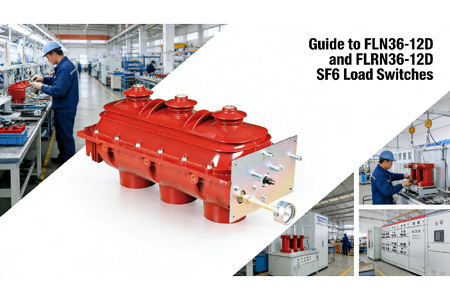

In modern indoor power distribution networks, reliable high-voltage switching is essential for safety and operational continuity. The FLN36-12D and FLRN36-12D represent established solutions as indoor, AC, sulfur hexafluoride (SF6) insulated load break switches. Designed for 12kV systems, these switches are engineered to perform safe load making and breaking operations within switchgear assemblies, providing critical isolation and switching functions.
The FLN36-12D is a primary load break switch module. Its core function is to safely make, carry, and break rated load currents under normal circuit conditions. Encapsulated in an SF6-filled, sealed stainless steel tank, it utilizes the excellent insulating and arc-quenching properties of the gas to achieve reliable operation in a compact, maintenance-free design. It typically serves as the main feeder or busbar switching unit in ring main unit (RMU) configurations.
The FLRN36-12D extends this functionality by integrating a fuse combination. This model incorporates one or more high-voltage current-limiting fuses in series with the load break switch. This combination provides not only standard load switching but also reliable, high-speed protection against short-circuit faults on the connected transformer circuit. This makes the FLRN36-12D an all-in-one switching and protecting unit, ideal for transformer feeders in compact substations.
Choosing between the standard FLN36-12D and the fused FLRN36-12D depends on the specific protection scheme. The former suits applications where fault interruption is managed by an upstream circuit breaker, while the latter provides dedicated, economical protection for distribution transformers. Putai supplies these robust SF6 load switch modules and supports customization alongside a complete range of medium-voltage accessories for seamless system integration. Contact Putai for dependable and tailored indoor switchgear solutions.
