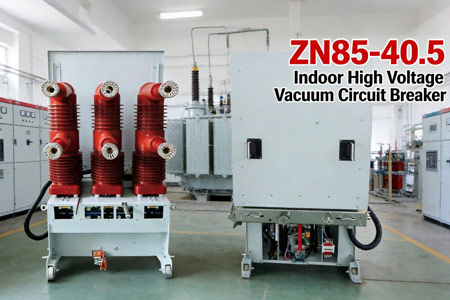

In the evolution of medium-voltage power distribution, the transition from traditional bulkier technologies to compact, maintenance-friendly vacuum circuit breakers marks a significant leap. The ZN85-40.5 Indoor High Voltage Vacuum Circuit Breaker represents this progress, engineered to reliably switch, carry, and interrupt currents up to 40.5kV in demanding industrial, mining, and substation applications, ensuring system safety and continuity.
Its core function centers on the advanced vacuum interrupter, housed within a unique insulation system. The three-phase arc-extinguishing chambers and conductors are each encased in a separate epoxy resin insulation cylinder. This design provides robust isolation, meets all air gap and creepage requirements, and is the key to achieving an exceptionally compact design with a phase-to-phase spacing of only 300mm—a major technical refinement over older, larger-form-factor breakers.
A pivotal aspect of its technical evolution is the integrated vertical layout. The specially designed spring operating mechanism is housed within the breaker frame, perfectly matched to the vertical arrangement of the interrupters. This integral, space-optimized structure results in a reduced overall depth, simpler mechanics, and output curves tailored for 40.5kV performance, offering flexible operation and high mechanical reliability for frequent duty cycles.
Therefore, the ZN85-40.5 embodies modern breaker design priorities: compact size, reliable electrical performance, and a maintenance-free mechanism. It is an ideal solution for modern switchgear where space efficiency and dependable operation under frequent switching are paramount. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For a detailed consultation on implementing this evolved vacuum circuit breaker technology, contact our team today.
