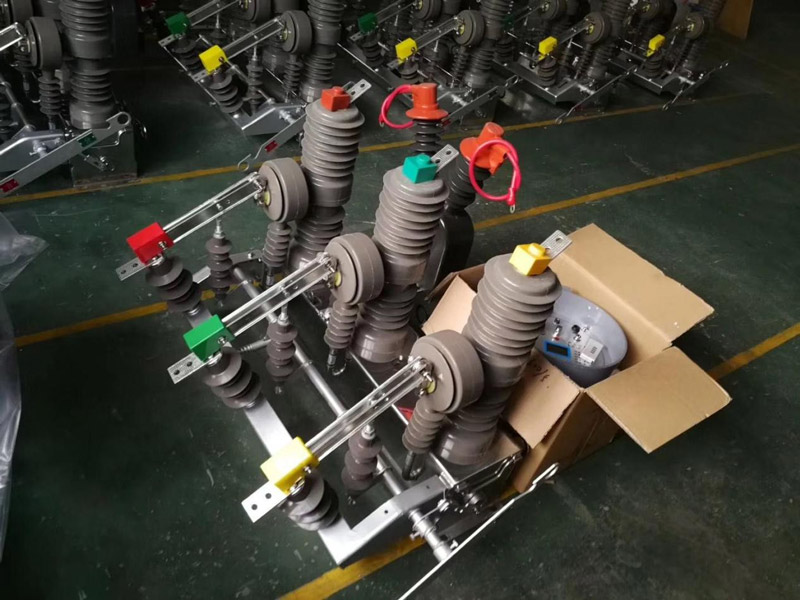

The ZW32-12 Outdoor High Voltage Vacuum Circuit Breaker offers users a critical choice in its operating mechanism: the traditional spring-operated mechanism or the advanced permanent magnet actuator. Each technology has distinct characteristics that influence reliability, maintenance needs, and suitability for specific applications. Understanding these differences is essential for optimizing the breaker's performance over its lifetime.
The spring-operated mechanism is a time-tested, robust design that stores energy in powerful springs, released to provide the high-speed motion required for contact separation and closure. Its mechanical simplicity and proven track record make it a reliable workhorse for standard distribution duties. With proper maintenance, it reliably achieves its rated 10,000 mechanical operations. It operates using a DC or AC motor for charging, a well-understood technology familiar to most maintenance crews .
In contrast, the permanent magnet actuator represents a significant technological leap. It uses magnetic force to hold the moving contacts in position and an electromagnetic coil to initiate movement, drastically reducing the number of moving parts by over 70% compared to spring mechanisms. This simplicity translates into dramatically higher reliability and a mechanical life that can exceed 30,000 to 100,000 operations, making it effectively maintenance-free for the lifespan of many applications .
The choice between the two hinges on the application's priorities. For standard rural or urban feeder protection where initial cost is a primary concern and maintenance access is routine, the spring mechanism remains a cost-effective and entirely capable choice. However, for applications demanding maximum reliability, reduced maintenance, and seamless integration with smart grid controllers—such as in remote locations or critical infrastructure—the permanent magnet actuator offers unparalleled advantages in longevity and operational consistency .
Therefore, the ZW32-12 platform provides the flexibility to select the optimal mechanism technology for your specific operational and budgetary requirements. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To discuss which operating mechanism best suits your network's needs, contact our engineering specialists.
(Article content references network resources.)
