The Role of FKN12A 12D Switch Fuse Units in Modern Distribution

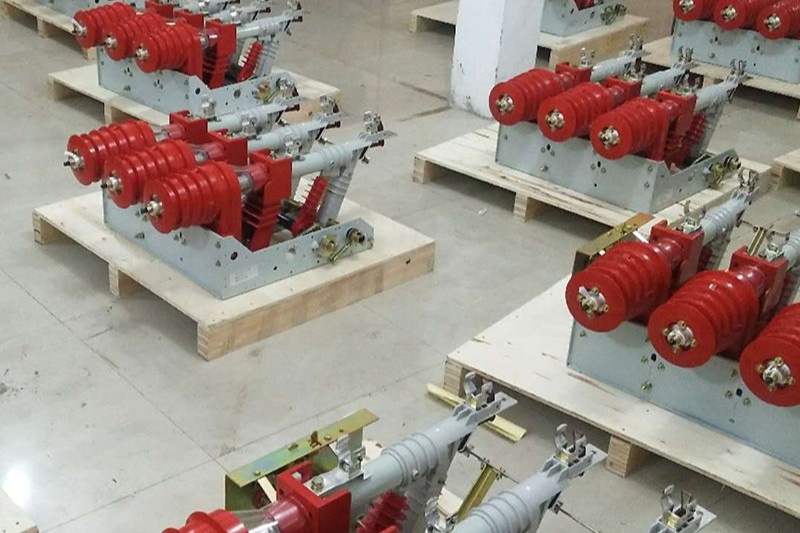

As power distribution networks evolve to accommodate distributed generation and increased automation, the need for reliable, compact, and cost-effective protection solutions at the grid edge grows. The FKN12A-12D pneumatic load switch-fuse combination unit plays a crucial role in modernizing these networks, particularly in urban and rural terminal substations and within ring main units and containerized substations. Its design aligns perfectly with the demands of secondary distribution.

One of the primary values of this unit is its compact integration of switching and protection functions. By combining a load switch capable of handling all normal operational currents with a fuse that provides reliable short-circuit protection, it eliminates the need for a more complex and expensive circuit breaker in many standard applications. This translates directly into reduced switchgear footprint and lower overall project costs, a key advantage in space-constrained urban installations or cost-sensitive rural electrification projects.

Its application versatility further enhances its value. The FKN12A-12D is equally at home protecting transformers, cables, and overhead lines. Its ability to break 1250kVA no-load transformer magnetizing currents and 10A cable charging currents makes it suitable for a wide variety of feeder types. In ring network configurations, its reliable operation ensures that faults can be quickly isolated, maintaining supply continuity to the majority of customers. The unit's robust construction and long mechanical life contribute to network resilience, reducing maintenance interventions.

Therefore, the FKN12A-12D is not merely a component but a building block for efficient and resilient secondary distribution grids. It embodies the principles of functional integration, operational reliability, and economic design that are central to modern network planning.

Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To explore how this versatile unit can add value to your distribution projects, contact our technical experts for a detailed consultation.
