ZN85 405 Handcart Seamless Integration with KYN61 40.5 Switchgear

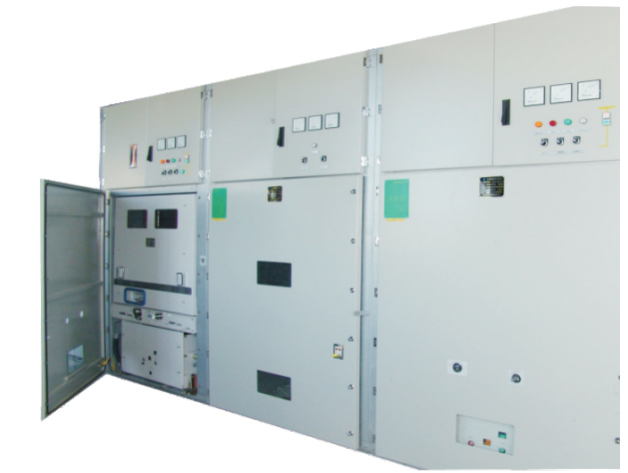

The ZN85-40.5 Indoor High Voltage Vacuum Circuit Breaker is engineered as the optimal protection solution for KYN61-40.5 metal-enclosed switchgear, the most widely used 40.5kV indoor switchgear platform. The handcart design ensures seamless integration, allowing the breaker to be inserted, withdrawn, and interlocked with the cabinet's mechanical and electrical systems without modification.

The breaker features a precision-engineered handcart propulsion mechanism utilizing a screw-nut system with an integrated overrunning clutch. When the operating handle is inserted, turning it drives the handcart smoothly along the cabinet's guide rails. Upon reaching either the test or working position, the clutch slips, producing an audible click that indicates proper seating and prevents over-travel. This ensures accurate alignment of primary disconnecting contacts and secondary control circuits every time.

The ZN85-40.5 is available in configurations compatible with KYN61 cabinet widths of 1200mm, 1400mm, and 1680mm, accommodating various busbar arrangements, current transformer configurations, and insulation requirements. The three-phase vacuum interrupters are housed within independent epoxy resin insulation cylinders, achieving a phase-to-phase spacing of only 300mm while maintaining full rated insulation levels. This compact design significantly reduces the switchgear's overall footprint.

The handcart incorporates comprehensive mechanical interlocks that coordinate with the cabinet's shutter mechanism and grounding switch. The interlock system ensures that primary shutters only open when the handcart is correctly positioned, and that the grounding switch cannot be operated when the breaker is in the working position. These features fulfill the five-prevention safety requirements essential for operator protection.

Therefore, for switchgear manufacturers and substation operators standardized on KYN61-40.5 platforms, the ZN85-40.5 handcart offers a proven, drop-in protection solution with full mechanical and electrical compatibility. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For detailed integration guidance and cabinet-specific technical data, contact our engineering team.
