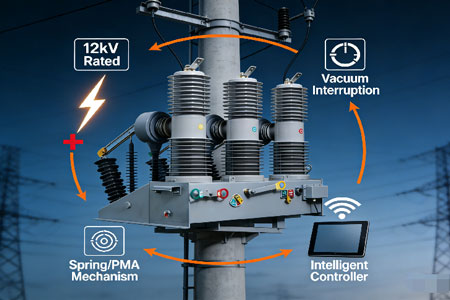

ZW32-12 Outdoor High Voltage Vacuum Circuit Breaker

The ZW32-12 series outdoor high-voltage vacuum circuit breaker is a three-phase AC 50Hz power distribution device designed for use in 12kV systems. It is engineered for overhead line applications where reliability, minimal maintenance, and adaptability to harsh environments are critical. The circuit breaker is typically pole-mounted and is well-suited for both utilities and industrial facilities requiring reliable feeder protection, fault isolation, and load switching capabilities.

One of its key features is its use of a high-performance vacuum interrupter housed within a durable, sealed, and weatherproof enclosure. This vacuum technology ensures efficient and rapid arc extinction during current interruption, contributing to a long electrical life and reliable short-circuit breaking performance. The design often incorporates a silicone rubber or composite material insulator that provides excellent resistance to pollution, UV radiation, and wide temperature fluctuations, making it ideal for outdoor use across diverse climates.

Operation is facilitated by either a spring-operated mechanism or a permanent magnet actuator (PMA), with options for manual or motorized charging. The spring mechanism is known for its robustness and simplicity, while the PMA offers advantages in speed, reliability, and suitability for automated reclosing schemes. When integrated with a modern microprocessor-based intelligent controller, the breaker can perform functions like overcurrent protection, fault detection, auto-reclosing, and remote communication via protocols like IEC 61850 or DNP3, enabling its use in smart grid and distribution automation applications.

In summary, the ZW32-12 is a versatile and dependable outdoor circuit breaker that balances performance with durability. Its vacuum interruption, rugged insulation, and flexible control options make it a practical choice for upgrading distribution networks, protecting renewable energy interconnections, or ensuring reliable power delivery in demanding outdoor settings. For applications where space in switchyards is limited or for overhead line protection, it presents a compact and effective solution.
