PGS Outdoor SF6 Load Break Switch Features and Operation Guide

In the realm of modern power distribution, the outdoor pole-mounted load break switch is an indispensable component for system protection and operational flexibility. Serving as the backbone for medium-voltage networks in various challenging environments, it ensures both safety and reliability. The PGS-12/24/40.5/630-20 Outdoor SF6 Load Break Switch stands out in this field with its SF6 gas insulation, versatile operation modes, and robust design tailored for harsh conditions.

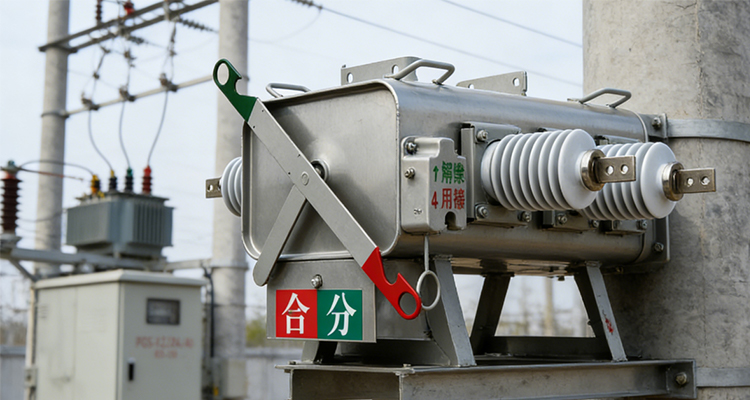

The PGS series load break switch is a three-phase, SF6 gas-insulated device engineered for overhead distribution lines. It is designed to reliably switch and isolate sections of the network under load. Its key characteristics include high reliability across a wide ambient temperature range (-40°C to +50°C) and at altitudes up to 3000m, meeting severe pollution levels up to class IV. The use of a spring energy storage operation mechanism ensures fast and consistent switching speeds of less than 100ms for reliable performance.


This switch offers unparalleled flexibility in operation. It supports three distinct modes: manual operation using an insulating rod on-site, motorized operation from a local control box, and full remote monitoring and control through integrated FTU/RTU interfaces. This adaptability allows it to serve simple rural networks and advanced automated grids alike. The stainless-steel construction, visible contact indicators (red/green), and pressure management systems guarantee durability, safety, and a maintenance-free lifespan of up to 30 years.

Operating the PGS switch is straightforward. For manual operation, a high-voltage insulating rod is used to engage the switch handle. For automated functions, the electronic control box manages all switching sequences, monitors SF6 gas pressure, and provides vital status indications. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For a comprehensive and reliable pole-mounted switching solution, contact our technical team for detailed application support.
