The Working Principle of SF6 Gas Circuit Breakers

The Working Principle of SF6 Gas Circuit Breakers SF6 (Sulfur Hexafluoride) Circuit Breaker is the ultimate guardian of safety and reliability. Its ability to reliably interrupt fault currents, especially at medium and high voltage levels, depends on a precisely engineered component: the SF6 puffer interrupter. This device masterfully controls the intense energy of an electric arc, ensuring swift and safe current interruption. Understanding its step-by-step opening (tripping) and closing cycle is key to appreciating the engineering behind dependable grid protection.

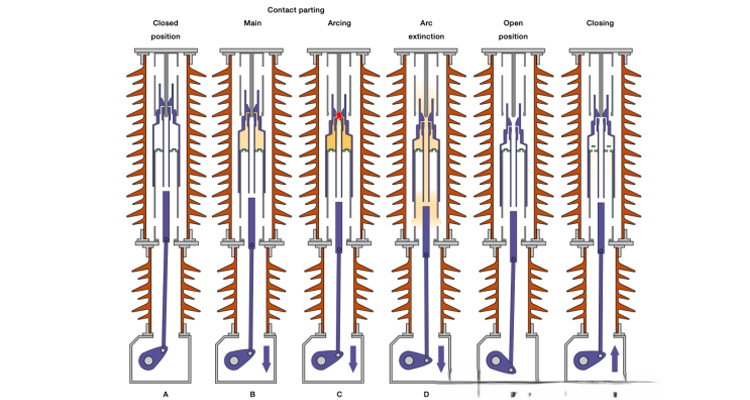

The process begins in the closed position, where the system operates normally. Here, the rated current is conducted with minimal resistance through robust, low-impedance main contacts. These contacts are designed for continuous duty, ensuring stable operation and minimal heat generation during normal load conditions. The interrupter is at rest, with its internal puffer cylinder ready but inactive, awaiting a command to operate.


When a fault is detected and a trip signal is issued, the interrupter springs into action. First, the main contacts separate, commutating the current to specialized arcing contacts. Simultaneously, the mechanical motion of the moving assembly compresses the SF6 gas within the sealed puffer chamber, building significant pressure. As the arcing contacts then part, a powerful electric arc is drawn between them. This is the most critical phase, where immense thermal energy must be managed. The SF6 gas, under high pressure, is forced through a nozzle and blasts directly into the arc column at the precise moment the alternating current approaches zero. This intense, directed flow of cold, dielectric gas rapidly cools and de-ionizes the plasma, ensuring complete arc extinction and preventing re-ignition.

Following successful interruption, the contacts reach their fully open, isolated position. The operating mechanism dampens the motion to a controlled stop. During the subsequent closing operation, the contacts come together in sequence, and the mechanical action of the piston refills the puffer volume with fresh, cool SF6 gas. This resets the interrupter, making it ready to perform its protective duty again. This entire, reliable cycle is why SF6 puffers are trusted for critical protection. Putai leverages this proven, robust interruption technology in its switchgear designs and also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For grid solutions built on reliable protection principles, contact our engineering team.(Article content references network resources.)
