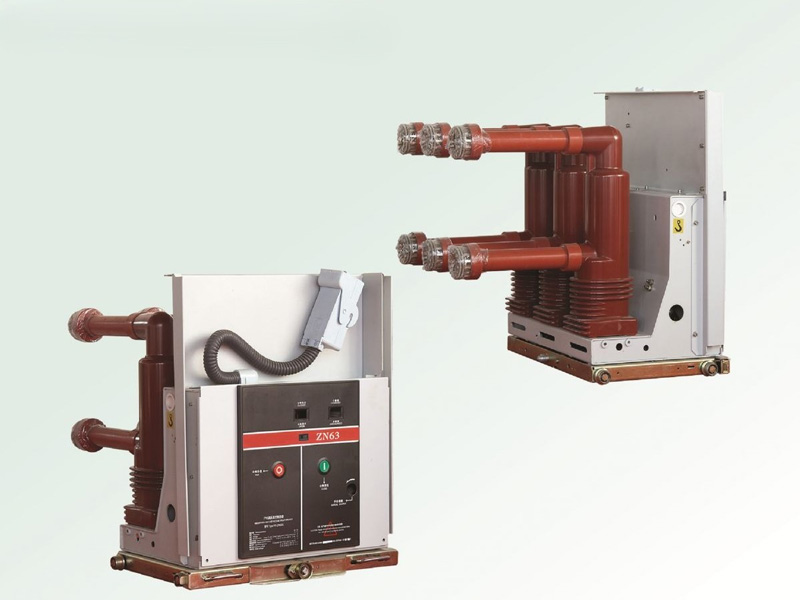

The ZN63(VS1)-12 Series Indoor Fixed-Type High-Voltage Vacuum Circuit Breaker is specifically designed for applications requiring frequent switching operations, such as capacitor bank switching, electric furnace transformer control, and high-voltage motor starting. With a mechanical life of 20,000 operations and 50 times rated short-circuit current interruption capability, the breaker delivers the durability required for the most demanding duty cycles.
Frequent operation applications place unique stresses on circuit breakers, particularly on the operating mechanism and the vacuum interrupter's contacts. The ZN63(VS1)-12's spring operating mechanism is engineered with advanced bearing materials and a cam-and-linkage system that minimizes wear and maintains consistent operating characteristics over thousands of cycles. The contact closing bounce time ≤2ms and three-phase opening/closing asynchronism ≤2ms ensure smooth, balanced operation that reduces mechanical stress on components.
The breaker's vacuum interrupter technology is inherently suited for frequent switching. Unlike oil or SF6 breakers, where arc extinction media can degrade with use, the vacuum interrupter experiences negligible contact erosion during normal load switching. The allowable cumulative wear thickness of moving/stationary contacts is 3mm, providing a substantial margin for thousands of switching operations before any performance degradation. The rated short-circuit breaking current interrupting times of 50 demonstrates the interrupter's ability to handle severe fault events even after extensive switching duty.
Key performance parameters for frequent operation include an average opening speed of 0.9-1.2m/s and average closing speed of 0.5-0.8m/s, ensuring consistent arc extinction performance regardless of operator timing. The closing time of 0.1s and opening time ≤0.05s at rated voltage provide fast response essential for protection coordination in automated distribution systems. The rated operating sequence of Open-0.3s-Close/Open-180s-Close/Open supports auto‑reclosing applications where rapid successive operations are required.
Therefore, for applications involving frequent switching of capacitor banks, motors, or furnace transformers, the ZN63(VS1)-12 provides the long mechanical and electrical life required to minimize downtime and maintenance costs. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. To select the optimal configuration for your frequent‑operation application, contact our technical specialists.
(Article content references network resources.)
