Proper installation, commissioning, and maintenance are essential to realizing the full potential of the ZN85-40.5 Indoor High Voltage Vacuum Circuit Breaker. Following established procedures ensures long-term reliability, safety, and optimal performance throughout the equipment's service life. This guide provides best practices for field personnel responsible for breaker acceptance, installation, and ongoing care.

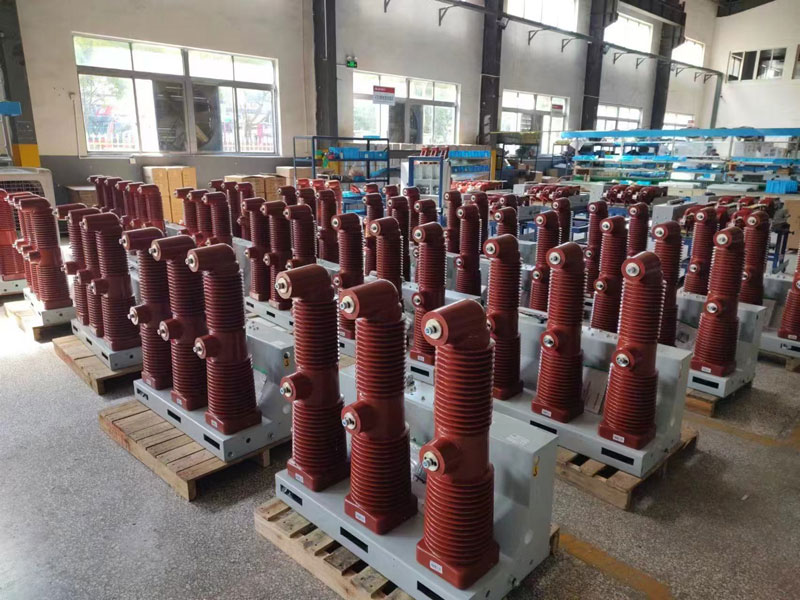

Upon receipt, carefully inspect the breaker for any transit damage. Verify that all random documents and spare parts are complete according to the packing list . Examine the insulating cylinders for cracks or damage, and check for any signs of moisture ingress. Before installation, clean the interior and exterior surfaces of the insulating cylinders using absolute ethanol to remove any dust or contamination accumulated during shipping .
The vacuum integrity of the interrupter should be verified before commissioning. With the breaker in the open position, apply a power frequency voltage of 95kV for one minute across the open contacts of each vacuum interrupter . The absence of breakdown or flashover confirms adequate vacuum. Additionally, perform several manual opening and closing operations with the breaker de-energized to verify correct mechanical function and secondary circuit wiring .
1.During installation into KYN61 switchgear, follow the proper handcart insertion procedure :
2.Ensure the cabinet's shutter mechanism is closed
3.Pull the handcart's left and right handles inward to retract the locking mechanism
4.Guide the handcart along the cabinet rails until the locking pins engage with the cabinet's positioning holes
5.Release the handles to secure the handcart in the cabinet
5.Open the propulsion access port, insert the operating handle, and crank the handcart to the test position
6.Verify secondary circuit connections before proceeding to the working position
Routine maintenance should be performed according to a scheduled plan. While the operating mechanism is designed for minimal maintenance, periodic inspection of mechanical linkages, fasteners, and contact wear indicators is recommended . The vacuum interrupters are sealed for life and require no internal maintenance. Use the power frequency withstand test annually or after any major fault interruption to verify continued vacuum integrity . Keep detailed records of all maintenance activities and any operational anomalies for future reference.
Therefore, following these best practices for acceptance, installation, and maintenance will maximize the ZN85-40.5's reliability and service life. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For technical support or training on ZN85-40.5 installation and maintenance, contact our service team.
(Article content references network resources.)
