The ZN63(VS1)-12 Indoor High Voltage Side-Mounted Vacuum Circuit Breaker represents a specialized solution for switchgear manufacturers and system integrators requiring compact, reliable protection in fixed-configuration panels. Unlike draw-out designs, its fixed mounting structure and side-entry configuration offer unique advantages for space-constrained applications where frequent module exchange is not a primary requirement .

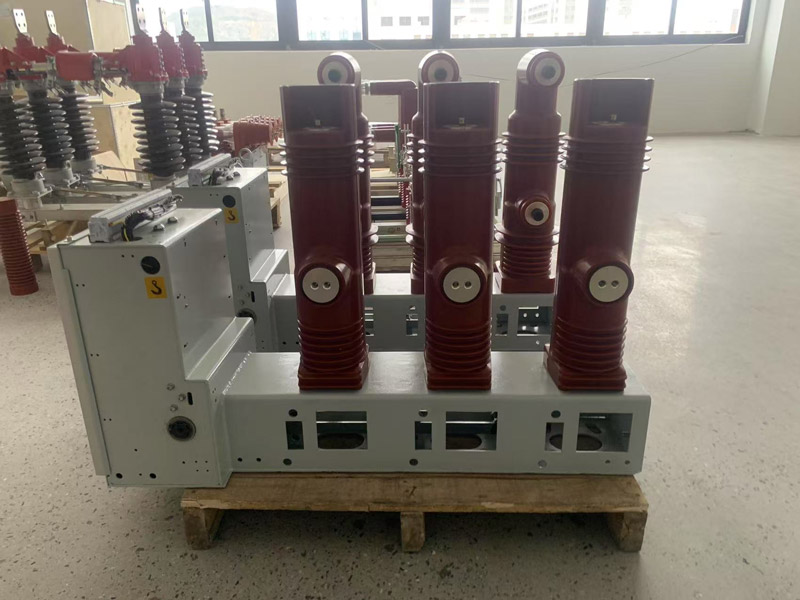

The side-mounted design positions the operating mechanism adjacent to the vacuum interrupters, rather than directly in front, creating a shorter overall depth that allows for more compact switchgear layouts . This is particularly valuable in ring network power supply units, box-type substations, and non-standard power systems where cabinet space is at a premium. The fixed installation eliminates the need for complex guide rails and interlock mechanisms associated with draw-out designs, reducing mechanical complexity and potential failure points.
Maintenance simplicity is a key feature of the ZN63(VS1)-12's fixed design. With the breaker permanently installed in the cabinet, all primary connections remain securely torqued, eliminating the risk of contact wear associated with frequent insertion and withdrawal . The spring operating mechanism is front-accessible, allowing for easy inspection, manual operation, and maintenance without requiring breaker removal. Visual indicators for contact position and energy storage status are clearly visible from the front panel .
The fixed design also contributes to enhanced reliability in demanding applications. The absence of moving handcart mechanisms eliminates a significant source of mechanical wear and potential misalignment . The 20,000-operation mechanical life and 50 times rated short-circuit breaking current interruption capability ensure the breaker withstands the most rigorous duty cycles. The rated currents up to 4000A and short-circuit making capacity up to 100kA make it suitable for heavy industrial applications where fixed installation is preferred .
Therefore, for switchgear manufacturers and end-users seeking a reliable, space-efficient protection solution, the ZN63(VS1)-12's fixed side-mounted design offers compelling advantages in simplicity, durability, and ease of integration. Putai also supports customization and the supply of related medium-voltage accessories to meet system integration needs. For detailed technical specifications and integration guidance, contact our engineering team.
